Automatic Control Stainless Steel Paraffin Wax Block Forming Machine

Product Description

Product Description

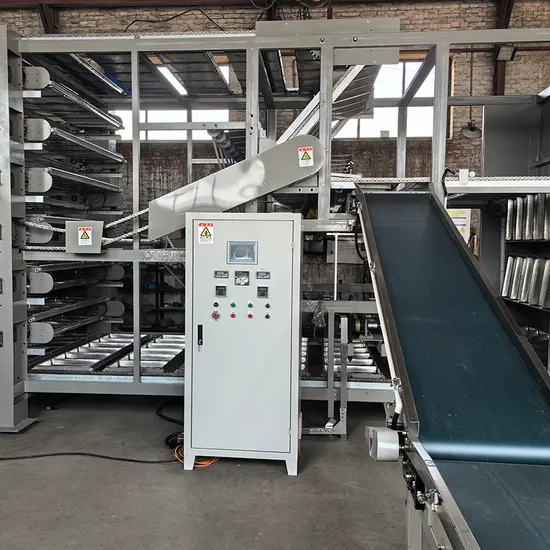

Automatic control stainless steel paraffin wax block forming machine
A wax block forming machine is a device used to process liquid wax into a specific shape wax block
The liquid wax is transported to the wax storage tank of the wax block forming machine by pipeline or container, which is composed of heated melted paraffin wax, beeswax, etc. The wax storage tank is equipped with heating and temperature control devices, such as paraffin wax heated to about 50-70 degrees Celsius. After the liquid wax enters the mold, it solidifies by circulating cooling water flowing in the mold cooling channel. The shape of the mold determines the shape of the wax block. During solidification, the forming machine may exert pressure to make the structure of the wax block compact and the appearance smooth. After the wax block is completely solidified, it is removed by the ejecting mechanism or the mold opening and closing mechanism.
Product Parameters

Production parameters	yield	Minicomputer: 100-200 yuan per hour; Mainframes: thousands of dollars per hour
	Wax block length range	A few centimeters to tens of centimeters
	Wax block width range	A few centimeters to tens of centimeters
	Wax block height range	A few centimeters to tens of centimeters
	Dimensional accuracy	±0.1mm
Raw material handling parameter	Applicable wax species	Paraffin wax, beeswax, microcrystalline wax, mixed wax, etc
	Wax storage tank capacity	Minicomputer: 5L; Mainframe: 100L or larger
	Heating power	Varies by machine (in kilowatts)
	Temperature control range	Paraffin: 50-70 ºC; Beeswax: 60-80 ºC, etc
	Temperature control accuracy	±2ºC
Forming system parameter	Mold material	Stainless steel, aluminum alloy
	Mold shape	Square, round, heart, etc
	Die accuracy	High precision ensures wax block quality
Demoulding system parameters	Release mode	Mechanical ejapping: the push rod stroke is a few millimeters to tens of millimeters, the thrust is tens of newtons to thousands of newtons; Pneumatic demoulding: air pressure 0.2-1MPa, air flow on demand; Hydraulic release: hydraulic pressure several mpa to tens of mpa
Physical parameters of equipment	Device length	Minicomputer: 1-2 meters; Mainframes: 5-10 meters
	Equipment width	Minicomputer: 0.5-1 m; Mainframe: 3-5 meters
	Equipment height	Minicomputer: 1-1.5 m; Mainframe: 3-6 meters
	Floor space	Minicomputer: several square meters; Mainframe: tens of square meters
	Equipment weight	Minicomputer: several hundred kilograms; Mainframes: several tons to 20 tons
Control and automation parameters	Control mode	Manual control: button, knob operation; Semi-automatic control: partial automation; Full automatic control: PLC control, touch screen or key operation, can store process parameters

Company Profile
Dongguang Tiancheng Machinery Factory, located in Chengnan Development Zone, Dongguang County, Cangzhou City, Hebei Province, 50 meters away from National Highway 105, 3 kilometers away from Beijing-Taiwan Highway,
The traffic is very convenient, the factory covers an area of 20 acres, construction area of 5000 square, with perfect cold and hot processing capabilities, the existing various precision processing equipment 30 sets, with a variety of precision machining capabilities, the existing staff of more than 40 people, including 6 engineering and technical personnel, advanced production equipment, perfect testing means, in petrochemical machinery has a good reputation, Well received by users.
The main products of our factory are: a complete set of benzol dewaxing refining equipment and technology, casing crystallizer, plate wax forming machine, particle forming machine, tower granulation, scraper forming machine, rotary condensing granulator and so on. The company has obtained a number of national patents, products sold at home and abroad and a number of large and medium-sized petrochemical enterprises.
Our factory will, as always, adhere to the "customer first, quality first, reputation first, service first" business purpose, strive to pursue excellence, and create brilliant results, welcome new and old customers to visit the company guidance exchange.
