CNC Vertical Machining Center with Advanced Control System and High Efficiency Engineering Centro Vertical De Precision PARA (milling machine for metal)

Product Description

Product Description

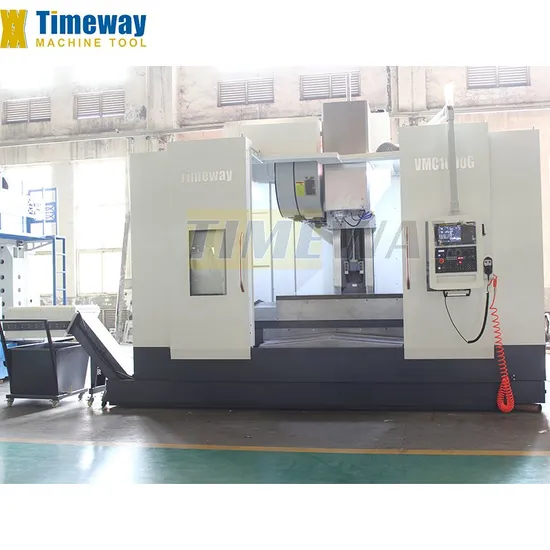

vertical machining center

MAIN CONFIGURATION & ACCESSORIES: 1. Resin sand casting; 2. X, Y, Z rails adopts imported linear guideway; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Import coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

OPTIONAL CONFIGURATION & ACCESSORIES: 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement system; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer

SPECIFICATION	UNIT	VMC1580G	VMC1690G	VMC1890G
Worktable size (LxW)	mm	1600x800	1800x900	2000x900
T-slot (No./width/pitch)	mm	5-22-135	5-22-165	5-22-165
Loading capacity	kg	1400	1600	2000
Longitudinal travel (X)	mm	1500	1600	1800
Cross travel (Y)	mm	800	900	900
Vertical travel (Z)	mm	700	800	800
Distance from spindle nose to table	mm	150-850	160-960	160-960
Distance from spindle center to column	mm	855	960	960
Spindle taper	-	BT-50(155)	BT-50(190)	BT-50(190)
Spindle speed	rpm	6000	6000	6000
X/Y/Z-axis rapid feed speed	m/min	24/24/24	20/20/20	20/20/20
X/Y/Z-axis servo motor (FANUC)	-	β30/β30/β30	β40/β40/β40	β40/β40/β40
X/Y/Z-axis positioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300
X/Y/Z-axis repositioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300
Main motor power	kw	15/18.5	18.5/22	18.5/22
Air pressure source	kg/cm2	6-8	6-8	6-8
Power capacity	Kva	35	40	40
Tool magazine capacity	T	24(Disc)	24(Disc)	24(Disc)
Guideway type	-	Linear	Linear	Linear
Machine weight	kg	12000	13000	14000
Machine dimensions (LxWxH)	mm	4100x2820x3610	4300x2920x3710	4500x2920x3710

Detailed Photos

CNC controller KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

High Rigidity Spindle Standard with belt driven spindle, optional for direct driven spindle

Taiwan ATC carousel type and disc type are available as option
