Low Cost High Grade CE Mixing Equipment in Chemical Industry
| US$1,800.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XM-1000
Application
Granules, Powder
Application Area
Chemical, Food, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
PLC Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Speed Control
Variable Speed
Stirring Type
Spiral
Temperature Control
Without Cooling System
Working
Convection Mixer
Warranty
1year
Mixer Type
Double Cone Mixer
Operating Type
Cycle Operating
Transport Package
Wooden Box
Specification
per model
Trademark
RONGXIN
Origin
China
Production Capacity
10000 PCS/Year
Product Description

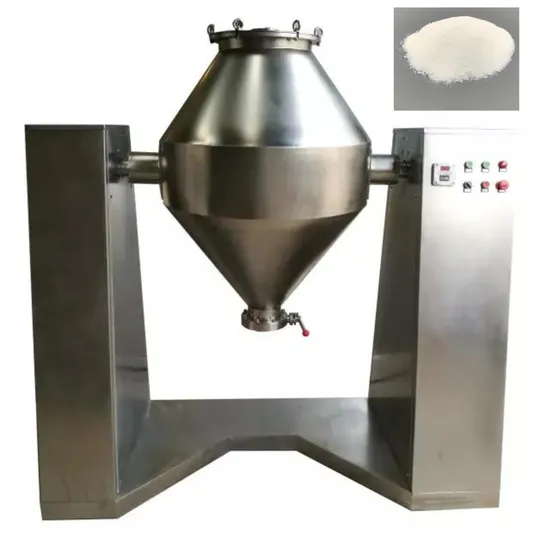

Product DescriptionDouble cone mixer is widely used in chemical industry, medicine, food, magnetic materials, battery powder, alloy materials, powder metallurgy and other fields.The double cone mixing machine can be used for powder and powder mixing, powder and particle mixing, etc.
The mixing cylinder adopts a double cone structure, the material rolls back and forth in the cylinder body, and can also be reversed after clockwise rotation to accelerate the diffusion and flow of the material, so that the material does not produce agglomeration when mixing.
Characteristics
Double cone mixing blender can evenly mix materials, shorten mixing time, reduce energy consumption, ensure product quality and improve production efficiency. It has played a certain social and economic benefits, and is an ideal equipment for solid powder mixing.
Product Parameters
| Model | Volume(L) | Max loading volume (L) | Max loading weight (Kg) | Mixing Time (min) | Motor(KW) | Mixing Speed (r/min) | Overall Dimension (L×W×H)mm |
| XM-50 | 50 | 25 | 25 | 0-99 | 1.1 | 20 | 1500*450*1200 |
| XM100 | 100 | 50 | 50 | 0-99 | 1.5 | 20 | 1550*550*1350 |
| XM-200 | 200 | 100 | 100 | 0-99 | 2.2 | 20 | 1800*700*1500 |
| XM-300 | 300 | 150 | 150 | 0-99 | 3 | 20 | 2100*760*1760 |
| XM--500 | 500 | 250 | 250 | 0-99 | 5.5 | 20 | 2320*950*1920 |
| XM--1000 | 1000 | 500 | 500 | 0-99 | 7.5 | 10 | 2450*1050*2500 |
| XM--1500 | 1500 | 750 | 750 | 0-99 | 7.5 | 10 | 2900*1300*2700 |
| XM--2000 | 2000 | 1000 | 1000 | 0-99 | 11 | 8 | 3000*1400*3100 |
| XM--2500 | 2500 | 1250 | 1250 | 0-99 | 11 | 6 | 3600*1400*3200 |
| XM--3000 | 3000 | 1500 | 1500 | 0-99 | 15 | 6 | 4000*1500*3500 |
| XM--4000 | 4000 | 2000 | 2000 | 0-99 | 15 | 6 | 4800*1300*3800 |
| XM--5000 | 5000 | 2500 | 2500 | 0-99 | 18.5 | 5 | 5400*1300*4000 |
| XM--6000 | 6000 | 3000 | 3000 | 0-99 | 22 | 5 | 5650*1300*4380 |
Application
