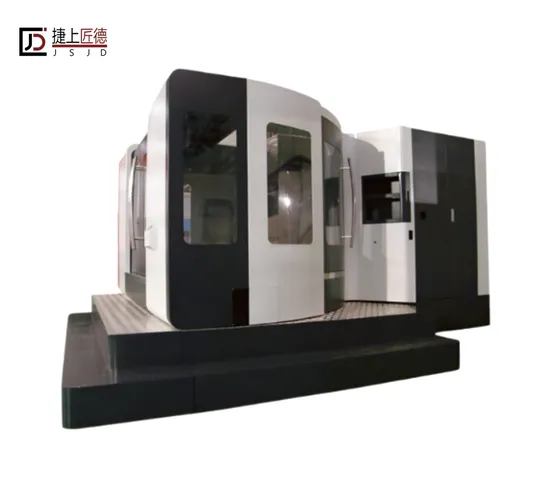

Horizontal Machining Center W-500/W-630/W-800/W-1000 Metal Horizontal Milling Machine

Product Description

Product Description
Application:
aerospace/war industry/IT/precision instrument/small and medium-sized box/mold
Characteristic:
1.Adopting the internationally popular inverted T-shaped moving column and integral bed structure, it has high rigidity and good stability.
2.The castings are cast using resin sand molds, with high accuracy retention.
3.The standard BT50 ring spray spindle is equipped with an air curtain protection device, completely avoiding the infiltration of cutting fluid and dust, ensuring spindle accuracy and extending service life.
4.The spindle transmission system of the machine tool is driven by a high-power servo motor, with a maximum speed of 6000rpm.
5.The machine tool is equipped with a spiral chip conveyor and a cutting scouring device that can timely discharge chips, avoiding the thermal impact of chips on the machine tool and ensuring high precision in machining.
6.The screw and guide rail of each axis are made of well-known brands, with high accuracy and good stability.
Characteristic:
1.The bed of the horizontal machine tool adopts the most seismic resistant inverted T-shaped layout in the international market, with a box shaped closed structure and a front and rear bed integrated.
2.The workbench achieves precise positioning and locking through a mouse tooth plate, and the indexing units can be selected from 1 ° and 0.001 °. Product Parameters
Inverted T layout

Item		Unit	W-630
Table	Number of tables	pcs	1	2	1	2
	Table type		1°	1°	0.001°	0.001°
	Table size	mm	630×700
	Maximum table load	kg	950	800×2	950	800×2
	Hole site		24×M16	24×M16×2	24×M16	24×M16×2
	Maximum workpiece rotation diameter	mm	Φ1100	Φ820	Φ1100	Φ820
	Table swiching time	s	/	24	/	24
Travel	X axis	mm	1050
	Y axis	mm	750
	Z axis	mm	900
	Spindle center to table surface	mm	120-870	0-750	120-870	0-750
	Spindle end face to table center	mm	130-1030
Controller	System		Fanuc/Siemens/Mitsubishi
	Total axes		4
Accuracy	X/Y/Z axis positioning accuracy	mm	±0.010/300
	X/Y/Z axis repositioning accuracy	mm	±0.006/300
	Rotary table positioning accuracy	"	±15
	Rotary table repositioning accuracy	"	±5
Spindle	Taper		BT50
	Maximum speed	rpm	6000
	Drive type		belt
Screw & Guide rail	X/Y/Z axis ball screw specification	mm	4512/4512/5012(x/y axis screw diameter=45mm,z axis=50mm;3 axis pitch=12mm)
	X/Y/Z axis guide rail type		linear
	X/Y/Z axis guide rail width	mm	45×2/45×2/55×2
*Tool magazine	Number of tools	T	24
	Type		BT50/tool-arm type
Motor power	Spindle motor	kw	15/22
	X/Y/Z axis servo motor	kw	4/7/7/1.6
	Coolant pump motor	w	750
Feed	Rapid feed	m/min	24/24/24
	Cutting feed	m/min	10/10/10
Others	Capacity	kva	40
	Power		380V/50HZ/3PH
	Air pressure	kg/cm2	6~8
	Casting dimensions	mm	3010×2690×2485	4225×2690×2485	3010×2690×2485	4225×2690×2485
	Casting weight	kg	8000	9000	8000	9000

*Optional tool magazine:BT50-48T/BT50-60T,chain-type tool magazine
*Other optional configurations:probe,high pressure spindle outlet system,etc...
------------------------------------------------------------------
Positive T layout

Item		Unit	W-630
Table	number of tables	pcs	1	2	1	2
	table type		1°	1°	0.001°	0.001°
	table size	mm	630×630
	maximum load	kg	1200	800×2	1200	800×2
	hole site		24×M16	24×M16×2	24×M16	24×M16×2
	maximum workpiece rotation diameter	mm	Φ	Φ	Φ	Φ
	table swiching time	s	/	24	/	24
Travel	X axis	mm	1100	1100	1100	1100
	Y axis	mm	900	900	900	900
	Z axis	mm	1100	1000	1100	1000
	spindle center to table surface	mm	80-980	30-930	80-980	30-930
	spindle end face to table center	mm	100-1200	200-1200	100-1200	200-1200
Controller	System		Fanuc/Siemens/Mitsubishi
	Total axes		4
Accuracy	X/Y/Z axis positioning accuracy	mm	±0.010/300
	X/Y/Z axis repositioning accuracy	mm	±0.006/300
	Rotary table positioning accuracy	"	±8	±15	±8	±15
	Rotary table repositioning accuracy	"	±2	±6	±2	±6
Spindle	taper		BT50
	maximum speed	rpm	6000
	drive type		belt
Screw & Guide rail	X/Y/Z axis ball screw specification	mm	5010/5010/5010(screw diameter=50mm;3 axis pitch=10mm)
	X/Y/Z axis guide rail type		linear
	X/Y/Z axis guide rail width	mm	55×2/55×2/55×2
*Tool magazine	Number of tools	T	24
	Type		BT50/tool-arm type
Motor power	Spindle motor	kw	15/22
	X/Y/Z axis servo motor	kw	7/9/7/1.6
	Coolant pump motor	w	750
Feed	Rapid feed	m/min	24/24/24
	Cutting feed	m/min	10/10/10
Others	Capacity	kva	40
	Power		380V/50HZ/3PH
	Air pressure	kg/cm2	6~8
	Casting dimensions	mm	3580×2520×2950	4420×2520×2950	3580×2520×2950	4420×2520×2950
	Casting weight	kg	9000	9500	9000	9500

*Optional tool magazine:BT50-48T/BT50-60T,chain-type tool magazine
*Other optional configurations:probe,high pressure spindle outlet system,etc...
Our company specializes in manufacturing various horizontal machining centers, and you can also choose models such as W500/W800/W1000 to ensure that they meet your needs. Company Profile
