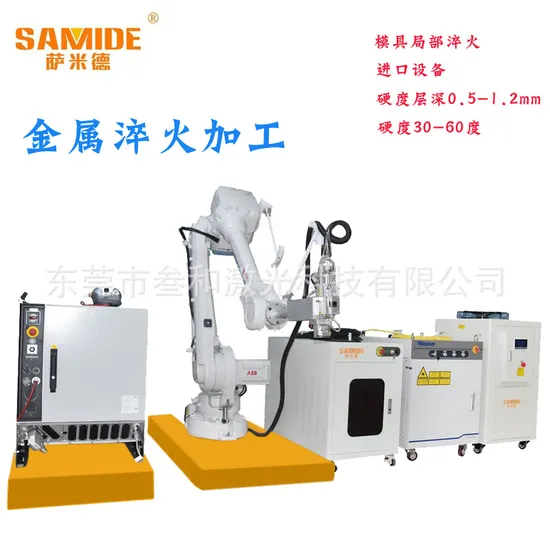

Quenching Mold Local Fast Quenching Robot Laser Quenching Equipment Mold DIP Fire

Product Description

wave length(nm)	915±10
output unstablility(%)	<3
Rate(Hz)	50~5k
red light point power(mW)	0.25~1
laser head parameters
output head mode	QBH
fiber core(μm)	600
Min bend semidiameter(mm)	≥400
Half angle of beam divergence(rad)	≤0.22
fiber length(m)	20
electronic parameters
Voltage	AC380V±38V,50/60Hz,
control mode	RS-232/AD
other parameters
size (W×H×D)(mm)	650×950×980
weight(Kg)	<150
temperature(ºC)	10~40
Hunidity(%)	<70
storage(ºC)	-10~60
Cooling	Water cooling
Power consumption	22KW

Our product features and advantages Strong performance easy to understand
1. The quenched parts are not deformed, the thermal cycle process of laser quenching is fast, medium carbon steel, large shafts
2. It hardly destroys the surface roughness and adopts a thin coating of anti-oxidation protection. Die steel and various dies
3. Laser quenching does not crack, precise and quantitative numerical control quenching, cold work die steel, mold, cutting tool
4. CNC quenching with precise positioning for local, groove and groove quenching Medium carbon alloy steel shock absorber
5. Laser quenching is clean and efficient No cooling medium such as water or oil is required Cast iron material Engine cylinder
6. The quenching hardness is higher than that of the conventional method. The quenched layer has fine structure and good strength and toughness. High carbon alloy steel Large roll
7. Laser quenching is rapid heating and self-excited cooling, without furnace heat preservation and cooling liquid quenching. It is a pollution-free green environmental protection heat treatment process, which can easily perform uniform quenching on the surface of large molds.
8. Because the laser heating speed is fast, the heat affected zone is small, and the surface scanning heating and quenching is used, that is, instantaneous local heating and quenching, so the deformation of the processed mold is small.
9. Due to the small divergence angle of the laser beam, it has a good directivity, and can perform precise local quenching on the surface of the mold through the light guide system.
10. The depth of the hardened layer of laser surface quenching is generally 0.3~1.5mm.
