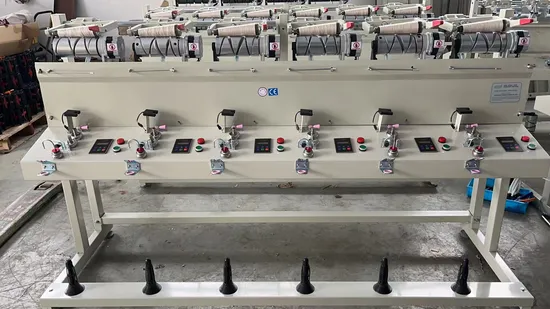

Two Side 12 Spindles Yarn Rewinding Machine
| US$2,300.00 | 1 Set (MOQ) |
Basic Info.
Voltage
220V
Automatic
Automatic
Certification
RoHS, CE, ISO
Spindle
1,2,4,6,8,12
Speed
300-1200 Meter/Min
Alarm
Yarn Breaking Auto Stop
Wax
Double Wax
Account
Auto Count
Speed Control
Single Spindle Control
Motorization
Servo Motor Driver
Traverse
Standard 147m
Yarn Detector
with Optical Sensor
Balancer
The Winding Pressure Can Be Controlled by Balance
Knot Clearing Adjuster
Adjusting The Clearing Gap(Optional)
Diameter and Distance of Cone
<200mm ,<150mm
Transport Package
Wooden Case
Specification
0.75x0.75x1.45m
Trademark
Arrow Star
Origin
China
HS Code
8445909000
Production Capacity
2000sets/Month
Packaging & Delivery
Package Size
210.00cm * 115.00cm * 135.00cm
Package Gross Weight
250.000kg
Product Description
122 spindle knitting yarn winding machineHigh speed cone to cone and hank yarn to cone rewinding machine
With Multi Funcational of (1) Cone to cone rewinding(2) Hank to cone Fine soft rewinding
Main features:
1 The Elecrical system is highly integrated, easy and each spindle indivial control by motor
2 Meter counter , automatic stop as set up
3 Frequency motor control and max. speed come to 1000 meter per minute
4 Option: joint device and dust clear device
5 Wax and oil device as customer
6 Line group, max. come to 120 spindle in one group
7 Two process available : cone to cone and hank yarn to cone
Specification
| Description | Parameters |
| Model Of equipment | AS-4S-WM |
| Type of Rewinding | Drum Random |
| Customized Spindle Number | 2/4/6/12/60/120 as order |
| Machine speed | Up to 800m/minute |
| Package shape | Cylindrical or conical |
| Traverse length | 150mm/ 152mm /154mm |
| Way of anti-overlapping | By electronic |
| Package bobbin | 0'/ 3o30"/4o20"/5o57"/9o15" |
| Package Density | Up to D290MM |
| Package weight | 0.2-0.4G/CM3 |
| Yarns /count | Cotton,cashmere,wool,silk,fiber/NE6-180 |
| Number of spindle | UP To 3Kgs |
| Gauge | 300mm |
| Machine layout | Vertical one sided /double sided |
| Driver mode | DC Motor, adjustable and individual |
| Power consumption | Install power 100W/Spindle,and 65W Consumed |
| Tension/wax System | Yarn tension and waxing Device per spindle |
| Automatic stop if breakage | Automatic type |
| Length Fixing | Adjustable Max 999999m |
| Balance | The winding force can be control by balance of gas spring |
| Slow start mode | Available |
| Electronic yarn clearer | Optional |
| Air splicer | Optional |
| Travelling blower/ sunction unit | Optional |
| Dimensions | 2 Spindle L650*W408*H1510mm |
| 4 Spindle: L1270*W408*H1510mm | |
| 6 Spindle L1870*W408*H1510 mm | |
| 12 Spindle: L1870*W850*H1510mm | |
| Weight | 2 Spindle: 48kgs |
| 4 Spindle: 89 Kgs | |
| 6 Spindle: 121Kgs | |
| 12 Spindle: 235Kgs | |
| Rated Power | Single phase 220V 50/60HZ |
