Ultrasonic Detector Pulse Tester/Non Metal Ultrasonic Detector Ultrasonic Tester

Product Description

Product Description

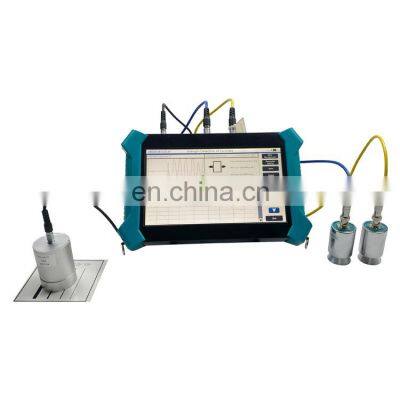

U910 Non-metallic Ultrasonic Detector Product DescriptionU910/U920 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.ParametersProduct ModelU910U920U930Master control unitBuilt-in A8 industrial control motherboardBuilt-in A8 industrial control motherboardBuilt-in A8 industrial control motherboardDisplay10.1 inch, high brightness, TFT color LCD capacitive screen10.1 inch, high brightness, TFT color LCD capacitive screen10.1 inch, high brightness, TFT color LCD capacitive screenOperational modeTouch screenTouch screenTouch screenStorge modeBuilt-in Electrionic Hard Disk(＞8GB)+ Large Capacity U DiskBuilt-in Electrionic Hard Disk(＞8GB)+ Large Capacity U DiskBuilt-in Electrionic Hard Disk(＞8GB)+ Large Capacity U DiskData transmission modeWireless cloud transport(Options)Wireless cloud transport(Options)Wireless cloud transport(Options)Acquistion modeSingle-channel manual point-by- point acquistionManual Point-by-point Collection of single and double channelsSingle and Double channel automatic continous and fast aquistionNumber of disposable profiles--TwoChannel Number1 transmit+1 receive1 emission+2 reception1 emission +2 receptionTrigger modeSignal triggeringSignal triggeringSignal triggeringSampling period(mμs)0.05~409.6 Multtistage Options0.05~409.6 Multtistage Options0.05~409.6 Multtistage OptionsAcoustic Time Accuracy(μs)0.050.050.05Acoustic time range(mμs)+1677700+1677700+1677700Width mesaurement fuctionMeasuring range:0~10mm; Measurement accuracy: 0.01mmMeasuring range:0~10mm; Measurement accuracy: 0.01mmMeasuring range:0~10mm; Measurement accuracy: 0.01mmDynamic range(dB)One hundred and forty-sixOne hundred and forty-sixOne hundred and forty-sixBandwidth(kHz)1~5001~5001~500Receiving Sensitivity(UV)Less than 10Less than 10Less than 10Gain Accuracy(dB)0.50.50.5Emission Voltage(V)65, 250, 500 and 1000 gear adjustable65, 250, 500 and 1000 gear adjustable65, 250, 500 and 1000 gear adjustableCommunication interfaceUSB, Bluetooth, WifiUSB, Bluetooth, WifiUSB, Bluetooth, WifiWorking hoursmore than 8more than 8more than 8Powder supply modeBuilt-in lithium battery External 220V~16V AC/DCBuilt-in lithium battery External 220V~16V AC/DCBuilt-in lithium battery External 220V~16V AC/DCWorking environment-10~40℃ Humidty (RH) ＜90%-10~40℃ Humidty (RH) ＜90%-10~40℃ Humidty (RH) ＜90%Host size(mm)300x200x55300x200x55300x200x55Main Features1.New upgraded wireless cloud transmission function;2.Five functions of measuring pile, measuring strength, measuring defect, sounding depth and width measuring;3.Stable performance and powerful function, it is the best choice for users with diverse needssuch as engineering inspection, teaching and scientific research;4.Semi-transparent, high-brightness, TFT color LCD screen;5.Full touch screen operation, simple and convenient, stable and reliable;6.Large memory capacity and working time of more than 10 hours;7.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound;8.U-disk transfers data and supports software upgrading through U-disk;9.Special analysis software is powerful, data analysis and processing, report generation, and report printing can be completed easily .ApplicationContact USCangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, With advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;
