Multi-Function Automatic Ciruclar Saw Sharpening Machine TF650

Product Description

1. Grinding machine features and advantages
1) Used for grinding tct circular saw blades for cutting aluminum, wood,panel,etc. This is a multi function model, able to grind top and face two surface.
2) Use special treated cast iron base and imported precision components to guarantee the accuracy and stablility of the machine. Long-term use without deformation
3) CNC with friendly interface panel, all parameters can be set directly and stored automatically
4) Precision<0.025mm or even better. satisfactory grinding performance
2. Grinding machine parameters

Saw blade diameter	110~700mm
Hook angle	-8°~ 27°
Top angle	8°~30°
Chamfer angle of top	45°~-45°
Chamfer angle of face	30°~-30°
Bore diameter	12-120mm
Wheel diameter	125mm*32mm
Wheel speed	4000~5000r/min
Grinding speed	1~20mm/s
Power	4KW
Dimensions	1800 X1200 X2030mm
Weight	1600kg

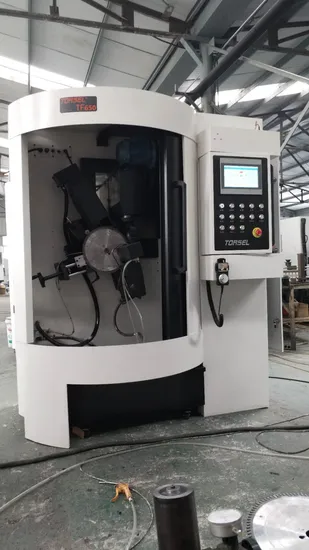

3. Grinding machine details
4. Machine package and Tuosi Company profile
FAQ
1. What products do we have?
Four categories saw blade grinding machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitablde for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. sharpener with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade sharpener: highest accuracy, suitabe for cermet tipped saw blade.
Except saw blade grinding, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our saw blade grinding machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low viibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficieny: adjustabled grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
