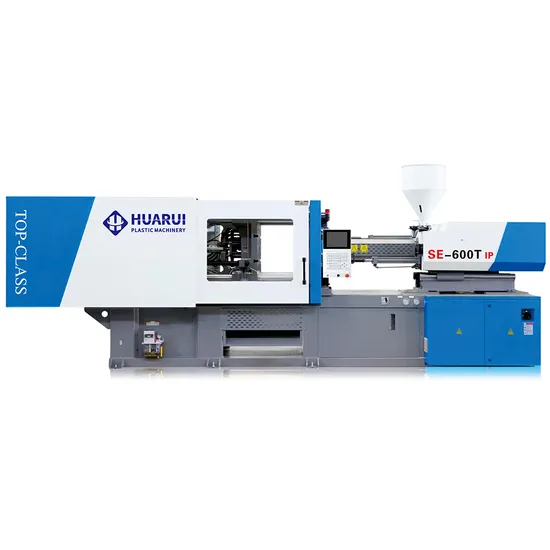

High Precision Fast Food Containers Plastic Cup Bowl Meal Plate Making Injection Molding Machine

High Precision Fast Food Containers Plastic Cup Bowl Meal Plate Making Injection Molding Machine

US$75,000.00-80,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-600T IP
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
1129cm³/Sec
Weight
28000kg
Motor Power
65kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
10.6*2.2*3.1m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

High Precision Fast Food Containers Plastic Cup Bowl Meal Plate Making Injection Molding Machine
Product Parameters
Se-600T/IP Plastic Injection Molding Machine Information
Item Unit A
B
C
Screw diameter mm 100
105
Theoretical shot volume cm³ 3534
Shot weight (PET) g 4099
Shot weight (PET) oz 144.6
Length/Diameter ratio L/D 25
Injection pressure Bar 1291
Injection rate cm³/sec 1129
Max.screw speed rpm 125
Clamping force KN 6000
Max.daylight mm 1350*1300
Open stroke mm 900
Space Between Tie-bars mm 920*870
Min mould dimension mm 400
Mould thickness range mm 920
Ejector force KN 190
Ejector stroke mm 230
No.of ejector pins unit 17
Max.motor power KW 55+55
System pressure MPa 175
Heater input power KW 65
Oil filling capacity L 700
Machine size M 10.6*2.2*3.1
Net weight KG 28000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
