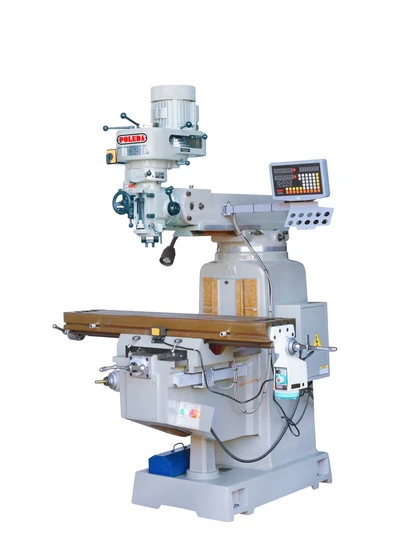

4s (NT30) Universal Vertical Turret Milling Machine Z-Axis Height 500mm

Product Description

Product Description
Milling machine product introduction
A milling machine is a machine tool that cuts material on Machined part by means of a rotating tool. It is one of the most commonly used machine tools in metal cutting processing, milling machine has the ability to process plane, surface, gear parts, and can drill, reaming, boring and other processes.
Basic structure of milling machine:
The basic structure of the milling machine mainly includes: bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, motor and so on.
1. Bed: Bed is the basic support part of the milling machine, carrying the various components. The bed is generally cast, with good stability and strong rigidity.
2. Slide table: The slide table is a moving part of the milling machine, which can slide back and forth on the bed. The sliding table is equipped with a workbench and a horizontal shaft, which realizes the positioning and processing of the Machined part by moving the sliding table.
3. Workbench: Workbench is the working platform of the milling machine, which is used to grip and fix the Machined part. The table can be rotated, tilted and other operations as required to complete complex Machined part processing.
Product Parameters
Structural characteristics
1. Base, fuselage, workbench, middle slide seat, lifting slide seat and other main components are cast with high strength materials.
And by artificial aging treatment, to ensure the long-term stability of the machine tool.
2, the milling head is equipped with turret milling head, and the main shaft is equipped with manual and micro feeding methods, convenient and accurate processing;
The milling head can be adjusted ±45° in the vertical plane and 360° in the horizontal plane to expand the machining range of the machine.
3. There are three kinds of manual feed, mobile feed and mobile fast feed on the vertical and horizontal table. The mobile feed can obtain 8 different feed speeds.
Can meet different processing requirements; The fast feed allows the workpiece to reach the machining position quickly and shortens the non-machining time.
4, lifting platform Z-lifting can be achieved by manual and maneuvering two ways, and manual and maneuvering are interlocked, eliminating unsafe factors.
5, the table X direction travel up to 800mm, and X, Y, Z three direction guide pair by ultra-audio quenching, precision grinding and scraping treatment,
Improve the accuracy and prolong the service life of the machine.
6. The manual lubrication device can force the longitudinal, horizontal and vertical lead screw and guide rail to lubricate, reduce the wear of the machine tool and ensure the efficient operation of the machine tool;
At the same time, the cooling system changes the size of the coolant flow by adjusting the nozzle to meet different processing needs.
7. The machine tool operating system is suspended on the upper right side of the machine tool through the support arm, which is ergonomic and easy to operate;
The operation panel is designed with figurative symbols, which is simple and intuitive.
8, turret milling machine spindle can be selected R8.NT30\NT40,
9, equipped with improved electrical box and controller, with 110V,220V output socket.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Anteroposterior stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	10.Clamp plate	1
	11, chuck	1

Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .

4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.

5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
