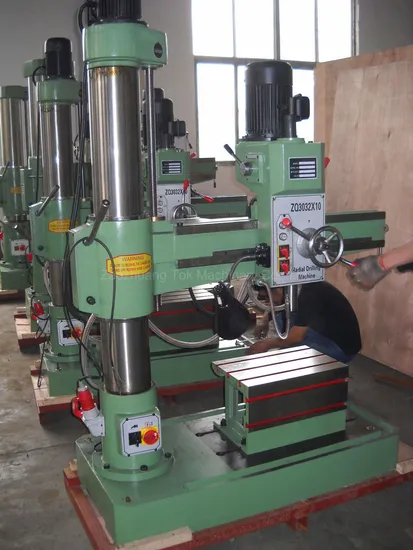

Z3032X10 Automatic Feed Radial Drilling Machine
| US$1,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
z3032x10
Controlling Mode
Manual
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
ISO 9001
Condition
New
Max.Drilling Dia.
32mm
Distance Between Spindle and Column
300-1000 mm
Spindle Taper
Mt4
Name
Self Drilling Screw Machine
Spindlbe Travel
120 mm
Transport Package
1520X760X2260 mm
Specification
drilling dia 32mm
Trademark
tokmc
Origin
China
HS Code
845929000
Production Capacity
100 Sets/Year
Product Description
jumbo drilling machine| Item | Unit | Z3025×10/1 | Z3032×8/1 | Z3032×10/1 | |
| Max.drilling dia. | mm | 25 | 32 | 32 | |
| Distance between spindle and column | Max. | mm | 1000 | 820 | 1000 |
| Min. | mm | 300 | 320 | 300 | |
| Distance between Spindle and base | Max. | mm | 1030 | 850 | 1000 |
| Min. | mm | 250 | 90 | 250 | |
| Spindle taper(MORSE) | NO.3 | NO.4 | NO.4 | ||
| Spindle travel | mm | 120 | 120 | 120 | |
| Spindle speeds number | Steps | 16 | 6 | 16 | |
| Spindle speeds range | r.p.m | 32-2500 | 75-1220 | 32-2500 | |
| Number of spindle feeds | Steps | 8 | 3 | 8 | |
| Range of spindle feeds | mm/r | 0.10-1.25 | |||
| Table size | mm | 450×670 | 450×670 | 450×670 | |
| Main motor power | kW | 1.5 | 1.5 | 2.2 | |
| Net/Gross weight | kg | 1600/1900 | 1200/1700 | 1600/1900 | |
