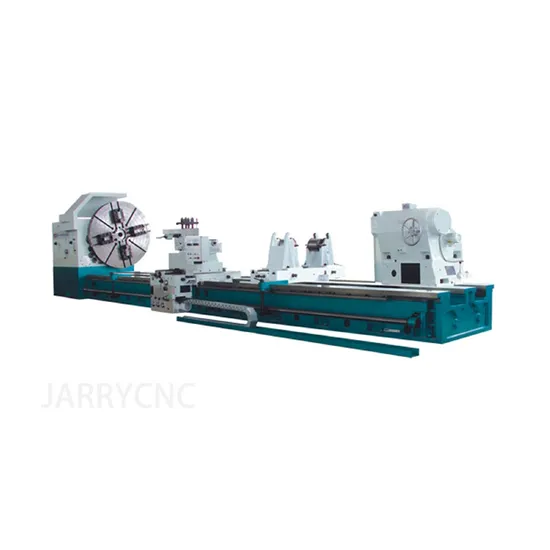

32tons Load Bearing Steel Mill Roll Turning Lathes Heavy Horizontal Lathe for Large Crankshaft Processing

Product Description

Product Parameters

MODEL	CW61(2)63E	CW61(2)80E	CW61(2)100E	CW61(2)120E
	CW61means without gap; CW62 means with gap
CAPACITIES
Max weight of workpiece	2.5 Ton
Max.swing over bed	630mm	800mm	1000mm	1200mm
Max.swing over cross slide	350mm	485mm	685mm	800mm
Center distance	1500, 2000, 3000, 4000, 5000, 6000, 8000, 10000mm
Max.swing over gap	830mm	1000mm	1200mm	1400mm
Valid length of gap	300m
Bed width	550mm
HEAD-STOCK
Spindle hole	105mm or 130mm(Option)
Spindle nose	C-11 or D-11
Spindle taper	1:20
Spindle speeds(Number)	14-750RPM(18 STEPS)
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds)	1-240mm(54 kinds)
Inch threads rangs(Kinds)	28-1 T.P.I(36 kinds)
Moudle threads range(kinds)	0.5-60 mm(27 kinds)
Diametral threads range(kinds)	30-1 DP(27 kinds)
Longtudinal feeds range(kinds)	0.048-24.3mm/r (72 kinds)
Cross feed range(kinds)	0.024-12.15mm/r (72 kinds)
Rapid feed:Long./Cross	4/2m/min
Leadscrew size:Diameter/Pitch	T48mm/12mm or T55mm/12mm(Option)
CARRIAGE
Cross slide travel	250mm	420mm	520mm	620mm
Compound rest travel	200mm
Size of tool shank	32*32mm
TAILSTOCK
Quill diameter	100mm		120mm
Quill taper	MORSE #6
Quill travel	240mm
MOTOR
Main drive motor	11kw
Coolant pump motor	0.09kw
Rapid feed motor	1.1kw

MODEL	CW61(2)63	CW61(2)80	CW61(2)100	CW61(2)120
	CW61means without gap; CW62 means with gap
CAPACITIES
Max weight of workpiece	5 Ton
Max.swing over bed	630mm	800mm	1000mm	1200mm
Max.swing over cross slide	350mm	480mm	680mm	880mm
Center distance	1850, 2850, 3850, 4850, 5850, 7650, 9850,11850mm
Max.swing over gap	830mm	1000mm	1200mm	1400mm
Valid length of gap	300m
Bed width	600mm
HEAD-STOCK
Spindle hole	105mm or 130mm(Option)
Spindle taper	1:20
Spindle speeds(Number)	7.5~750RPM	5.5-730RPM(18 STEPS)
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds)	1-240mm(52 kinds)
Inch threads rangs(Kinds)	1-14 T.P.I(26 kinds)
Moudle threads range(kinds)	0.5-120 mm(53 kinds)
Diametral threads range(kinds)	1-28 DP(27 kinds)
Longtudinal feeds range(kinds)	0.01-24.3mm/r (72 kinds)
Cross feed range(kinds)	0.05-12.15mm/r (72 kinds)
Rapid feed:Long./Cross	4/2m/min
CARRIAGE
Cross slide travel	370mm	430mm
Compound rest travel	200mm
Size of tool shank	32*32mm
TAILSTOCK
Quill diameter	100mm		120mm
Quill taper	MORSE #6
Quill travel	240mm
MOTOR
Main drive motor	11kw
Coolant pump motor	0.09kw
Rapid feed motor	1.1kw

MODEL	CW61100	CW61125	CW61140	CW61160	MODEL	CW61/2 128	CW61/2 148	CW61/2 168	CW61/2 198	CW61/2 208
CAPACITIES						CW61means without gap; CW62 means with gap
Max weight of workpiece	8 Ton				CAPACITIES
Max.swing over bed	1000mm	1250mm	1400mm	1600mm	Max weight of workpiece	10 Ton
Max.swing over cross slide	620mm	870mm	1000mm	1200mm	Max.swing over bed	1280mm	1480mm	1680mm	1980mm	2080mm
Center distance	1.5m,2m,3m,4m,5m,6m,8m,10m,12m				Max.swing over cross slide	800mm	1000mm	1200mm	1500	1600mm
Bed width	780mm				Center distance	2m,3m,4m,5m,6m,8m,10m,12m
HEAD-STOCK					Max swing over gap	1580mm	1780mm	1980mm	2280mm	2380mm
Spindle hole	Ø 130mm				Valid length of gap	600mm
Spindle taper	Metric 140#				Bed width	1100mm
Spindle speeds(Number)	3.15~315RPM				HEAD-STOCK
GEAR BOX-THREADS & FEEDS					Spindle hole	Ø 130mm
Metric threads range(kinds)	1-120mm(44 kinds)				Spindle taper	Metric 140#
Inch threads rangs(Kinds)	1/4-24 T.P.I(31 kinds)				Spindle speeds(Number)	3.15~315RPM
Moudle threads range(kinds)	0.5-60 mm(45 kinds)				GEAR BOX-THREADS & FEEDS
Diametral threads range(kinds)	1/2-56 DP(27 kinds)				Metric threads range(kinds)	1-120mm(44 kinds)
Longtudinal feeds range(kinds)	0.1-12mm/r (56 kinds)				Inch threads rangs(Kinds)	1/4-24 T.P.I(31 kinds)
Cross feed range(kinds)	0.05-6mm/r (56 kinds)				Moudle threads range(kinds)	0.5-60 mm(45 kinds)
Rapid feed:Long./Cross	3400mm/min, 1700mm/min				Diametral threads range(kinds)	1/2-56 DP(27 kinds)
CARRIAGE					Longtudinal feeds range(kinds)	0.1-12mm/r (56 kinds)
Cross slide travel	650mm				Cross feed range(kinds)	0.05-6mm/r (56 kinds)
Compound rest travel	280mm				Rapid feed:Long./Cross	3400mm/min, 1700mm/min
Size of tool shank	45*45mm				CARRIAGE
TAILSTOCK					Cross slide travel	860mm
Quill diameter	160mm				Compound rest travel	280mm
Quill taper	METRIC 80#				Size of tool shank	45*45mm
Quill travel	300mm				TAILSTOCK
MOTOR					Quill diameter	Ø260mm
Main drive motor	22kw				Quill taper	METRIC 80#
Coolant pump motor	0.15kw				Quill travel	300mm
Rapid feed motor	1.5kw				MOTOR
					Main drive motor	30kw
					Coolant pump motor	0.15kw
					Rapid feed motor	1.5kw
					Tail stock motor	1.5kw

MODEL	CW61126	CW61146	CW61166	CW61186	CW61206
CAPACITIES
Max weight of workpiece	20 Ton
Max.swing over bed	1260mm	1460mm	1660mm	1960mm	2060mm
Max.swing over cross slide	760mm	960mm	1160mm	1360	1560mm
Center distance	3m,4m,5m,6m,8m,10m,12m
Bed width	1180mm
HEAD-STOCK
Spindle hole	Ø 105mm
Spindle taper	Ø 140mm---1:7
Spindle speeds(Number)	Variable 4 steps (3-24;6-48;12-96;24-200RPM)
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds)	1-60mm(44 kinds)
Inch threads rangs(Kinds)	1/2-30 T.P.I(31 kinds)
Longtudinal feeds range(kinds)	0.1-6mm/r (56 kinds)
Cross feed range(kinds)	0.05-3mm/r (56 kinds)
Rapid feed:Long./Cross	3400mm/min, 1700mm/min
CARRIAGE
Cross slide travel	700mm		800mm
Compound rest travel	280mm
Size of tool shank	45*45mm
TAILSTOCK
Quill diameter	Ø280mm
Quill taper	Ø100---1:7
Quill travel	300mm
STEADY REST
Close type steady rest	Ø250~600mm
Open type steady rest(Option)	Ø450~780mm or Ø550~1200mm
MOTOR
Main drive motor	55kw
Coolant pump motor	0.15kw
Rapid feed motor	1.5kw
Tail stock motor	1.5kw

MODEL	CWZ61160	CWZ61180	CWZ61200	CWZ61220	CWZ61240	CWZ61250
CAPACITIES
Max weight of workpiece	32 Ton
Max.swing over bed	1600mm	1800mm	2000mm	2200mm	2400mm	2500mm
Max.swing over cross slide	1250mm	1450mm	1650mm	1850mm	2050mm	2150mm
Center distance	3m,4m,5m,6m,8m,10m,12m,16m
Bed width	1600mm (Integral 3 Guidways)
HEAD-STOCK
Spindle hole	Ø 85mm
Spindle taper	Ø 120mm---1:7
Spindle speeds(Number)	Variable 3 steps (0.8-18;2.4-54;7.2-160RPM)
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds)	2-40mm
Inch threads rangs(Kinds)	1-14 T.P.I
Module threads	1.5-20mm
Longtudinal feeds range(kinds)	0.125-45mm/r
Cross feed range(kinds)	0.063-24mm/r
Rapid feed:Long./Cross	3000mm/min, 1500mm/min
CARRIAGE
Cross slide travel	720mm
Middle slide travel	600mm
Size of tool shank	70*70mm
TAILSTOCK
Quill diameter	Ø300mm
Quill taper	Ø100---1:7
Quill travel	300mm
STEADY REST
Close type steady rest	Ø400~750mm
Open type steady rest	Ø650~1200mm
MOTOR
Main drive motor	80kw(DC)
Coolant pump motor	0.15kw
Rapid feed motor	1.5kw
Tail stock motor	1.5kw

If you want to know more product details, please feel free to contact us!

Product Description
FEATURES
Machine bed adopts high strength iron to ensure rigidity and precisionUltrasonic frequency quenched guide-ways ensure good wear-resistance*Headstock gears hardened and ground to achieve precision and low noise

HEAVY DUTY LATHE INTRODUCTION
The lathe machine is universal metal machining equipment for metal processing, mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, and turning internal and external pipe threads such as metric, inch, module, DP threads etc., meanwhile this series is also used to drill holes in bar material and make oil groove, this series lathe is able to process metal materials including cast iron, steel and non-ferrous metals.
