High Output Waste Crushed Washing PE PP Film Nylon Rubber Poly Bag Granulating Melt Plastic Recycle Pelletizing Machine Recycling Extruder Machine

Product Description

The water cooling type double stage plastic recycle machine is an advanced recycling equipment that is designed to process plastic materials in a highly efficient and effective manner. This plastic pelletizing machine uses a double-stage process to break down plastic materials into their basic components, which can then be reused or repurposed.
The first stage of the process involves melting and breaking down the plastic materials into small pieces. This is done using a combination of mechanical and chemical processes, such as shredding, grinding, and chemical reactions. The water cooling system helps to maintain a consistent temperature throughout this stage, which is important for preventing the plastic materials from becoming overheated and melting.
Once the plastic materials have been broken down into smaller pieces, they are then transferred to the second stage of the process. Here, the smaller pieces are further processed and refined to remove any impurities or contaminants. The water cooling system is once again used to maintain a consistent temperature and ensure that the materials are properly processed.
One of the key benefits of using a water cooling type double stage plastic recycle machine is that it offers a highly efficient and effective solution for recycling plastic materials. By using a double-stage process, businesses can achieve a higher level of purity and quality in the recycled materials, which can be used for a wide range of applications.
In addition, this type of machine is also highly cost-effective and environmentally-friendly. By recycling plastic materials, businesses can reduce the amount of plastic waste that ends up in landfills or oceans, and help to preserve natural resources.
Overall, a water cooling type double stage plastic recycling granulator machine is a powerful tool for businesses and industries looking to minimize waste and maximize the value of their plastic materials. The double stage plastic recycling cutting machine offers a sustainable and effective solution for recycling plastic waste, and can help to promote environmental sustainabilit
Here is the machine specifications for reference

Model	XG-RYB90/80	XG-RYB120/110	XG-RYB135/125	XG-RYB150/150
Suitable material	HDPE/LDPE/LLDPE/PP film or hard scrape
Output capacity(kg/hr)	30-50 for film 50-80 for hard scrape	80-120 for film 150-200 for hard scrape	150-200for film 250-300 for hard scrape	250-300 for film 400-500 for scrape
First stage Screw diameter(mm)	90mm	120mm	135mm	150mm
Screw L/D Ratio:	23:1	23:1	23:1	23:1
First stage Driving motor(kw)	22	37	55	90
Second stage Screw diameter(mm)	80mm	110mm	125mm	150mm
Screw L/D Ratio:	10:1	10:1	10:1	10:1
Second stage Driving motor(kw)	11	22	30	45
Machine weight:	2500	4000	5000	7000

Production procedure
Product

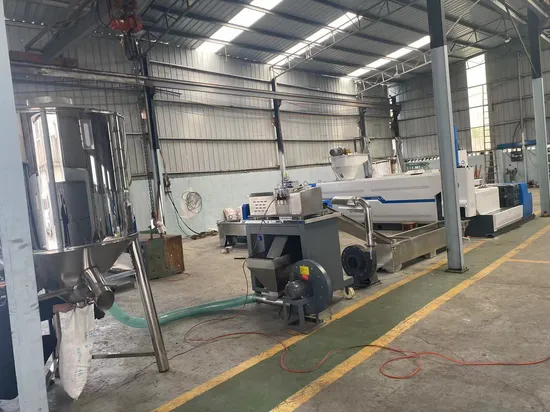

Machine outook
Cutter unit
Extruder unit
Auto loader
Control frame
Machine package and shipment
Our Service Team
Factory layout
FAQ
