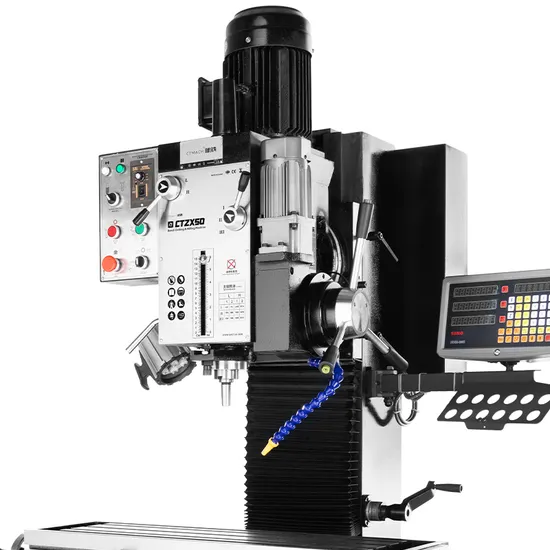

Milling Machines Ctzx50 Manual Milling Drilling Machines with Factory Price
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
CTZX50
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Drilling Diameter
50mm Casting
Spindle Taper
Mt4
Table Size
900X260mm
Table Travel
400X270mm
Motor Power
2.2kw
Machine Weight
200kgs
Packing Size
1450X1350X2100mm
Transport Package
Standard Wood Case
Specification
1330x1450x2220mm
Trademark
CTMACH
Origin
China
HS Code
8459290000
Production Capacity
500sets /Month
Product Description
| MODEL | CTZX50 |
| Maximum drilling diameter | Casting 50mm Steel 40mm |
| Maximum tapping diameter (steel) | M30mm |
| Maximum end milling diameter | 100mm |
| Maximum end milling diameter | 32mm |
| Spindle taper hole | MT4 |
| Maximum stroke of spindle | Manual 150mm Automatic 120mm |
| Distance from spindle centerline to column | 325mm |
| Spindle speed change stages/range | Level 6 70~1430 r/min |
| Spindle feed series/range | Stepless 0~125 mm/min |
| Working table size (length x width) | 900×260mm |
| Table travel (X×Y) | 400x270mm |
| The maximum distance from the end face of the spindle to the table surface | 50~500mm |
| Table T-slot number and slot width | 3x14mm |
| The series and range of lateral motorized feed of the worktable | Level 8 24~720mm/min |
| Milling head vertical left and right tilt angle | ±90° |
| Main motor | 2.2 KW 380V |
| Spindle feed motor | 0.14KW |
| Workbench cutting motor | 0.37KW |
| Cooling pump motor | 0.09 KW 25 L/min |
| Machine tool dimensions (length x width x height) | 1330×1450×2220mm |
| Machine tool packaging size (length × width × height) | 1450×1350×2100mm |
| Net weight | 800kg |
| Gross weight | 900kg |
Features
Gear transmission, with drilling, milling and tapping functions; cooling and lighting systems; The unique spindle automatic feeding system uses an independent external feeding motor. Electromagnetic clutch control, the feed speed can be adjusted steplessly; The spindle box can move up and down along the column and tilt at ±45°; The worktable can be moved longitudinally and has stroke protection; Use CE-certified electrical components and Taiwan-made intelligent controllers; It has short circuit and overload protection functions.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail. CTZX50 machine size 145×135×210cm
CTZX50 machine net weight 900kg
Hydraulic forklifts or cranes are recommended for handling
Product display
Details introduce
Standard Accessories(Attached in Machine)
