Best Quality Sinomach Brand 38tons Excavator Zg380 with Cheapest Price

Product Description

Product Description

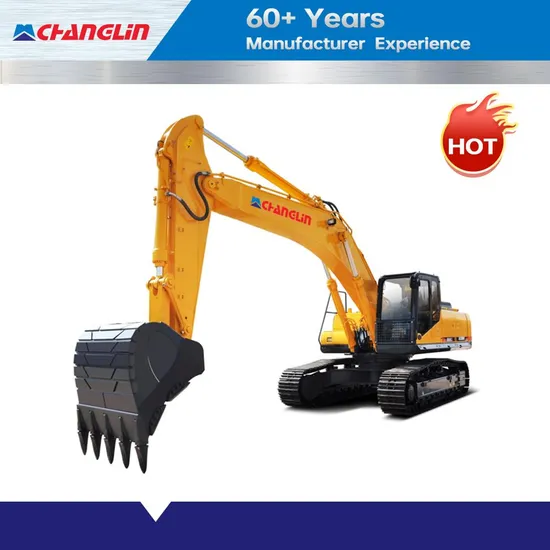

CHANGLIN ZG380 Fixed EFI engine (conforming to Stage III emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts
Based on the above advanced technology, CHANGLIN ZG380 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•new generation of high-power EFI engines with strong power, low fuel consumption and high reliability
•New type­ hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and easier operation
•Equipped with large-caliber cylinders, optimizing the arrangement of each key hinge point, improving the digging force of the whole machine, setting the automatic supercharging function, and automatically increasing the digging force as the load increases
•New generation control system intelligently adjusts the hydraulic absorption power according to the working conditions, and optimizes the system matching to ensure the full performance of the whole machine.
•Equipped with high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions
•Safe and reliable new cab with automatic air conditioning.
Product Parameters

	ITEM
Dimensions	Operating weight	Kg	37300
	Rated bucket capacity	m3	1.8
	Overall length	mm	11280
	Overall width(600mm track shoe)	mm	3280
	Overall height	mm	3560
	Trunable width	mm	3155
	Cabin height	mm	3172
	Groundclearance of counterweight	mm	1183
	Engine cover height	mm	2628
	Min. ground clearance	mm	471
	Tail length	mm	3451
	Turning radius of turnable	mm	3505
	Wheel base of track shoe	mm	4050
	Chassis length	mm	4962
	Chassis width	mm	3280
	Track shoe gauge	mm	2680
	Standard track shoe width	mm	600
Performance	Max. traction	KN	288
	Travelling speed (H/L)	Km/hr	5.5/3.3
	Swing speed	rpm	8.8
	Gradeability	Degree(%)	35(70%)
	Ground pressure	Kgf/cm2	0.7
Working Range	Maximum digging radius	mm	10546
	Ground maximum digging radius	mm	10349
	Maximum digging depth	mm	5884
	Ground maximum digging depth	mm	5707
	Maximum vertical digging depth	mm	4021
	Maximum digging height	mm	11110
	Maximum dumping height	mm	7900
	Min. front turning radius	mm	3514
	Bucket digging force	kN	240
	Stick digging force	kN	214
Engine	Model		QSL9
	Type		6-cylinder in-line, four-stroke turbocharger
	Emission		Tier III
	Displacement	L	8.9
	Rated power		214KW@2100RPM
	Max. torque	N.m	1344N.m@1500rpm

Company Profile
Our Advantages
After Sales Service
Packaging & Shipping
FAQ
Q1:Are you original manufacturer?
A: Yes, we CHANGLIN are an official leading manufacturer in construction machinery. We set up juint venturers in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms 2022 can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, EAC, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
