Montacargas Fork Lift 2.5 Ton 3 Ton 3.5 Ton 4 Ton 5 Ton Duple or Triple 3m 4.5m 5m 5.5m Container Mast Diesel Fork Lift Forklift with Best Price

Product Description

Product Description
Montacargas Fork Lift 2.5 Ton 3 Ton 3.5 Ton 4 Ton 5 Ton Duple or Triple 3m 4.5m 5m 5.5m Container Mast Diesel Fork Lift Forklift with Best Price
Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.Xinchai Brand Diesel EngineIn-line 4-cylinder water-cooled, 4-stroke, electronically controlled VP pump, rated power 36.8Kw, maximum torque 165Nm, emissions meet the requirements of China's fourth-stage emission standards;Strong power, high reliability, to meet the use of high-load conditions; The whole machine has high reliability and stable quality, ensuring a long service life.ZhongChai Brand Hydraulic TransmissonZhongchai hydraulic transmission gearbox, the first domestic brand, is selected. The transmission of the hydraulic transmission gearbox is more stable, the shifting is lighter and more flexible, and the driving is light and comfortable,work intensity.
Detailed Photos

EngineChina top brand engine: Xinchai brand National IV standard;Optional Japan Yanmar, Mitsubishi, Nissan engine and so on.	Automatic transmissionZhongchai brand,with the technology TCM from Japan.Mechanical and Hydraulic transmission optional	Hydraulic SteeringMake the steering smoother and quicker to ensure the safety of the driver
Anti-Fatigue SeatNew suspension adjustable seat,More comfortable when working	LED LightSave electricity, longer service life.	Wear-resistant tire Adapt different roads and working environment.

OPTIONAL1. Standard China Xinchai engine,optional Japanese, Yanmar and Mitsubishi engine and others;
2. Mechanical and Automatic transmission can be choosen.
3. Standard 2-stages 3000mm mast, optional 3-stages 4500mm -7500mm mast and others;
4. Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and1820mm forks;
5. Optional side shifter, fork positioner and other attachments;
6. Standard pneumatic tire, optional solid tire .
7.Color and logo can customized.Product Parameters

Model		CPC20/CPCD20	CPC25/CPCD25	CPC30/CPCD30	CPC35/CPCD35	CPC/CPCD40	CPCD50
Rated Loading Capacity(kg)		2000	2500	3000	3500	4000	5000
Load Center Distance(mm)		500	500	500	500	500	500
Drive Form		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Max Lifting Speed(Full load)(mm/h)		400	400	440	420	390	375
Max Driving Speed (Empty/Full load)(km/h)		17/19	17/19	18/20	18/20	18/20	20/24
Fork Lifting Height(mm)		3000	3000	3000	3000	3000	3000
Mast Tilt Angle (Forward and Backward)		6°/12°	6°/12°	6°/12°	6°/12°	6/12	6/12
Min. Turning Radius(mm)		2450	2450	2530	2540	2720	2750
Min. Ground Clearance(mm)		110	110	135	135	145	170
Length (Including Fork)(mm)		3605	3605	3970	4000	4100	4350
Width(mm)		1160	1160	1230	1230	1230	1400
Height(Door Frame Indented)		2095	2095	2110	2110	2120	2330
Max working Height(mm)(Door Frame Out Completely)		4080	4080	4270	4270	4280	4265
Height From Ground to Overhead Guard(mm)		2095	2095	2105	2105	2115	2330
Front Overhang(mm)		451	451	465	465	465	585
Wheel Base(mm)		1640	1640	1775	1775	1900	2150
Front Wheel Track(mm)		970	970	1000	1000	1060	1180
Rear Wheel Track(mm)		970	970	970	970	970	1190
Front Wheel Tyre		7.00-12	7.00-12	28*9-15	25*9-15	250-15	300-15
Rear Wheel Tyre		6.00-9	6.00-9	6.50-10	6.50-10	6.50-10	7.00-12
Self Weight(kg)		3320	3600	4250/4290	4660/4700	4810/4850	6800
Fork Width(mm)		122	122	122	122	122	150
Fork Thickness(mm)		40	40	45	45	50	55
Block Shelf Height		1000	1000	1225	1225	1225	1275
Standard Fork Length(mm)		1070	1070	1220	1220	1220	1220
Engine Rated Power(kw)		36.8	36.8	36.8	36.8	36.8	62.5
Engine Speed At Rated Power (rmp)		2500	2500	2500	2500	2500	2200
Engine Maximum Torque(Nm)		157	157	156	156	190	320
Engine Speed At Maximum Torque(rpm)		1800	1800	1700~1900	1700~1900	1600-1800	1800
Variable speed form		Mechanical / Hydraulic	Mechanical / Hydraulic	Mechanical/ Hydraulic	Mechanical/ Hydraulic	Mechanical/ Hydraulic	Heydraulic

Packaging & Shipping

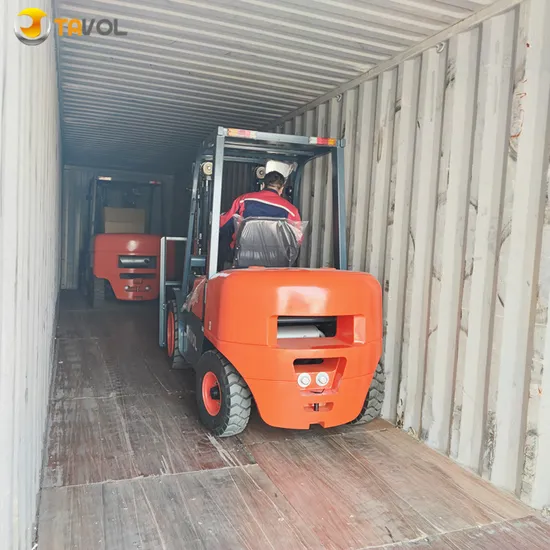

One set is packed in plywood case,delivered by LCL. Two sets and more forklifts are packed in one container,all wheels fixed withiron corner block,tightened with frap rope,etc.
Project in the world
Tavol Foklift is more and more popular in the world,customers from different countries purchased our forklift and used in their warehouse,factory and outside.They give our forklifts high evaluation.

Tavol Forklift in Saudi Arabia	Tavol Forklift in Australia	Tavol Forklift in Turkey
Tavol Forklift in Germany	Tavol Forklift in Mexico	Tavol Forklift in Ireland

Company Profile
Tavol Group, Specialized in Export for More then 20 Years.A Chinese Material Handling Equipment Manufacturing Brand that Helps your Business Grow Step by Step, Mainly Manufactures Material Handling Equipment Including Diesel Forklifts,Electric Forklifts and LPG Forklift under 10 tons; Mobile Scissor Lift and Self-propelled Aerial Work Platforms that lift Height Less than 18m,etc.
What can we do for you?1. We are manufacture,also group company,which has more than 20 years export experience.
2.All machines sold must be tested 3-5 times before shipment,100% quality assurance.
3. 7*24 hours technical support by email,telephone or video online.
4. We provide free wearing parts, instructional videos, and provide pre-sale, in-sale and after-sale service support for life.
5.24 months warranty time.
Pre-Sales Service* Inquiry and consulting support.
* Photos&Videos for your order before
shipment.
* Factory visiting.
Warranty* 24 months guarantee for whole machine.
* 24 hours online technical support .
* sending tool boxes for your maintenance spare.After-Sales Service
* Training how to use the machine.
* Whole life-time supply for spareparts.
* User manual and details videos if you requested.
* Overseas customer visiting. FAQ
1.Q:Are you factory or trade company
A:We are factory.
2.Q:What your term of payment?
A:We accept TT, Letter of credit, Online bank payment etc.
3.Q:How about your delivery time?
A: Lead time 3-5 days for in stock, If need customized, it will take about 15 working days.
4.Q:What is the MOQ?
A: 1 set is okay. More quantity wit nice discount.
5.Q:How long is your product warranty?
A:The product warranty period is 24 months.
6.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
