Wood Veneer Peeling and Cutting Machine for Veneered Plywood Making

Product Description

Wood Veneer Peeling and Cutting Machine for Veneered Plywood making

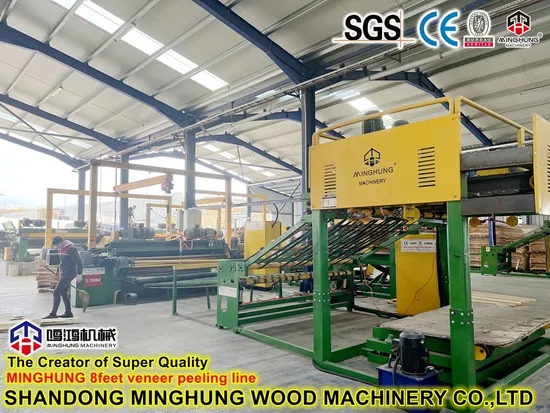

Veneer production line
This is the completely veneer production line for making veneers. The full veneer production line includes Debarker machine, Peeling machine, Log loader, and Automatic stacking machine.
With this full veneer peeling line, you can start to do veneer business. Veneer as the material for making plywood board, wooden furniture, it is very important. Therefore, one set good quality veneer production machines, will be big helpful for your business.
The standard veneer production line includes 4feet/5feet and 8feet/9feet, also we can customize the veneer machine as your own demands.

Detailed veneer machine
<1> Wood debarker
Wood debarker also be called log rounding machine, or wood debarking machine, it is at the first step of the whole veneer production line. Its function for peeling wood bark.
Some people may ask, can't I directly peel wood bark by veneer peeling machine? the answer is: yes, you can, But, it will not good for veneer peeling machine's knife. Because the wood bark may has some small stone, iron nail or others, it is easy to break the peeling knife, and it will decrease the production capacity.
Thats why we advise with wood debarker.
The operation of wood debarker is very easy, just start debarker, and put wood into it, one worker move the handle forward and backward, debarker will rotate wood and peel its bark.

Name	Wood Debarker
Max peeling length	1400mm
Max peeling diameter	550mm
Speed	70m/min

<2> Rotary veneer lathe

Rotary veneer lathe is very important for veneer quality. Its function for produce layers of wood veneers by processing wood.
One set good veneer lathe, which can peel kinds of wood including hard wood and soft wood, and keep stable and strong, and ensure the peeled veneer thickness is high accurate, and smooth surface, it will be big helpful for your business, whatever you use the veneer by yourself, or you sell it.
For our veneer lathe, first its weight is heavey, we use thick steel material; And its body through special treatment, to keep good shape; And it is made by experienced workers and engineers, make sure its structure is reasonable and good, which can works very well; And we choose and use high level type spare parts and accessories, to make sure the whole machine works well and keep long life span.

Name	Rotary veneer lathe
Max peeling length	1400mm
Max peeling diameter	500mm
Thickness	1-4mm
Apeed	30-100m/min
Knife system	Hydraulic knife holder

<3> Log loader

Log loader is simple, but also plays important roles. Its function for automatically convey wood into debarker and peeling machine, so the whole production line includes two pieces log conveyor.
Although it is simple, but ours also be different with other suppliers, first we make it four rows chains, so even your log a little shorter, it also can convey your wood; and we use thick material, so each of them are heavier.

Name	Log loader
Quantity	2pcs
Weight	2400kgs

<4> Automatic papel stacker

Automatic stacker is the last step of the whole peeling line, its function for automatic stacking the peeled veneers. WIth this stacker, it can help you save labor cost, and improve work efficiency and production capacity.

Name	Veneer stacker
Max stacking height	1300mm
Speed	Adjustable to match the veneer lathe
Stacking veneer size	1300* 800mm

Related veneer machine
Magnetic knife sharpener
For grinding blade edge. When the blade of your debarker and peeling machine become blunt after use a while, you need grinding them quickly, or the blunt blade will affect veneer quality.
This type knife sharpener's table is magnetic, it is more conveniently
Veneer drying machine
For drying peeled veneer humidity. The original peeled veneer humidity is high, it is not suitable for the next production step whatever you making plywood or wooden furniture. So veneer drying machine is also important, the dryed veneer humidity will be 5-10% as you want. And for our dryer machine, we can make sure that the dryed veneer still keep good quality, balance and completely.
Glue spreader
For spreading glue on veneer double surface. So workers can lay the glued veneer out, to be the required panel size.

MINGHUNG machine
We are factory /manufacturer /supplier of the complete line of plywood machinery and wood veneer machine in China.
We can offer you all the necessary machinery for making plywood board.
Machines as: Veneer production line as above, Veneer dryer (veneer roller dryer, Veneer mesh dryer, and Hollow veneer press dryer, and Solid hot platens veneer dryer), Sawdust dryer, Veneer patching machine, Veneer jointing machine, Plywood assembly line, Hydraulic glue mixer, Glue spreading machine, Plywood cold press, Plywood hot press, Film hot press, Short cycle melamine hot press, Plywood edge cutting sizing machine, Plywood sander- single or double sides, polishing machine, Panel turnover, Lift table
With many years production experience, advanced production equipment, experienced workers, engineers, and technicains, we can make sure our plywood machine be mature, good, and strong.
And according to your plywood conditions, we can offer the suitable machine for you.

Packaging & Shipping

If you want to produce wood veneer, or plyw
ood, or other wooden products, welcome contact us for more information about the veneer making machine.
