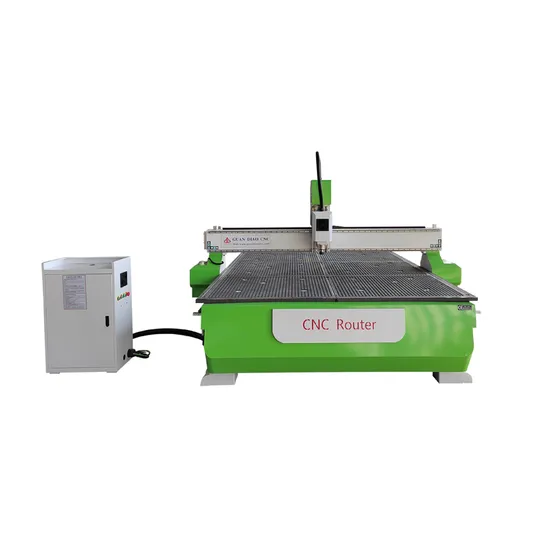

China 1325 2030 2040 1530 Wood Cabinet 3axis 4 Axis 3D Woodworking Machinery Engraving Machine Atc CNC Router with CE

Product Description

>>>Technical Parameters

Working area	2000*4000mm
Travelling speed	20m/min(MAX)
Working speed	12m/min(MAX)
Working voltage	AC220V(Optional 380V)
Spindle power	Water cooled 3.2KW-24000RPM
Device architecture	One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small deformation
Driving system	XYZ: 86 high torque stepper drive motor and drive
Rack and pinion	The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack
Guide Rails	Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw
Operating system	Weihong
Platform structure	Aluminum profile + fixture
Electrical accessories	Omron, Chint
Inverter	Best
Power cable	Shanghai customized high-soft high-speed shielding cable, anti-interference and anti-breakage
Lubrication system	Oil pump centralized lubrication control
Security system	Overtravel protection, electrical protection etc.
Dust collector	2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood
Fastenings	The transmission parts are fixed with high strength 12.9 class screws, and the sheet metal is fixed with 304 stainless steel screws
Accuracy	Each axis is fixed rigidly, and the locating pin is added to the precision part
Quality Control	Incoming material, process, delivery full control, 24 hours machine test

>>>Details
Spindle
HQD/WHD 3.5kw air cooled spindle, low noise, high cutting force and high efficiency.
Rack & Rail
Helical rack Taiwan HIWIN 20 square guide rail
Control cabinet
Independent control cabinet with Leadshine 860H Stepper drivers
Lubrication
Automatic oil lubricating system
>>>Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
NEW 1325/1530 woodworking cnc atc machine linear type atc tool changer cnc router with 12/16 pcs tools atc nesting machine 2040
