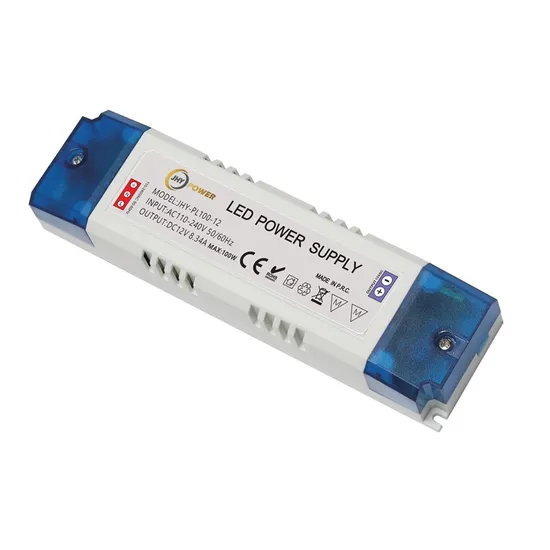

12V/24V/12W AC DC Regulated LED CCTV Switching Power Supply

Product Description

Product Details: In 2019, 2020, 2021, the EU market has been crazy about our plastic case LED power supplies for three years. It's the most popular item on sale! We call it: Sapphire.
We're not kidding when we say that our power supplies are the most innovative and stylish! Imagine a fireproof, hard-sided case for your LED lights. Not only do they protect against dropping or damaging it but also ensure safe transport of these small devices, take you without worrying about getting dust in there (or worse) as they have an almost airtight housing, safe, fireproof, you say your customers can not like and love them? And it is compact and much smaller than conventional products, but the price is lower than traditional products.
It is no exaggeration to say that our product is the best seller among all Chinese suppliers. Get in touch with us to get the latest price list, making your business grow day by day!
Below are the product features of our "Sapphire".

Product Features
Input specification	Input voltage:	100-240VAC
	Input frequency:	50/60Hz
	Input surge:	Cold start: /230VAC
Output specification	The output voltage can be adjusted:	±10%
	Start-up time:	<=1S(input 230V,Io=100%)
	Keep time:	>=20mS (input 230V,Io=100%)
	Voltage regulation:	(Full load) <=0.5%
Protection function	Overload protection:	105% - 150% rated power, automatic recovery
	Over-voltage protection:	105% - 150% of the rated voltage
Insulation intensity	Input-output:	1500VAC/1min
	Input-ground:	1500VAC/1min
	Input-ground:	500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
EMC standards	According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental	Working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	Height above sea level <=2000M
Cooling method	Natural cooling air convection
Product Type Table
Product model	Input (V)	Output specification	Dimension(mm)	Ripple, Noise	Efficiency
PL-012	100-240Vac	12V1A, 24V0.5A	89*38*22	100mV	85%
PL-024	100-240Vac	12V2A, 24V1A	115*44*28	100mV	85%
PL-036	100-240Vac	12V3A, 24V1.5A	139*44*28	100mV	85%
PL-050	100-240Vac	12V4.1A, 24V2A	166*44*28	100mV	85%
PL-060	100-240Vac	12V5A, 24V2.5A	166*44*28	100mV	85%
PL-080	100-240Vac	12V6.67A, 24V3.32A	166*44*28	100mV	85%
PL-100	100-240Vac	12V8.25A, 24V4.1A	166*44*28	100mV	85%

Packing: The LED power supplies can pass the drop box test, our packaging is in line with the materials used for export, and we protect the power supply with foam so that it will not damage during transportation. Each carton is controlled within 15kgs
What can you do with LED power supplies?
Constant voltage include 5v, 12v, 24v, 48v, the LED power supply can apply to any LED lights, LED strips, or LED ropes at 5V, 12V, 24V or any other electrical equipment with 9v, 15v, and 48v.
