High Quality 500kg Load Capacity Reel Lifting/Roll Lifter with Rotation

Product Description

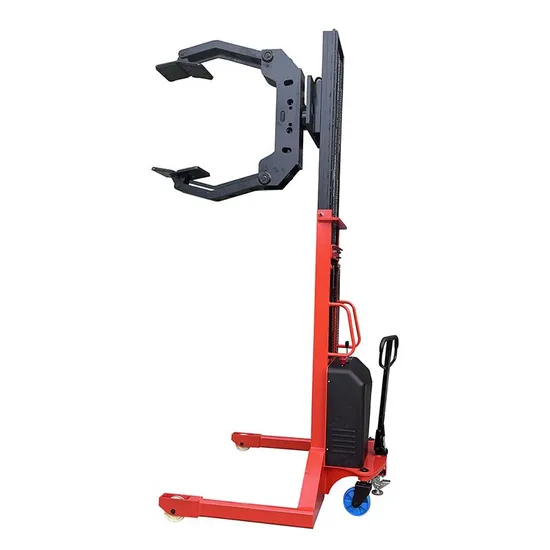

Product Description Semi electric roll lifter with clamp attachment is designed for carrying cylindrical or roll materials of varying sizes up to 39" in diameter rated with a maximum weight capacity and lift height of 1100 lbs and 118" high respectively. This unit has a clamp-like pincer which securely grabs the roll around the outside to lift and rotate it.A robust lifting capacity lets users transfer more rolls in fewer trips, maximizing efficiency.

M o d e	CTS0516-1000W	CTS0530-1000W
Capacity (kg)	500	500
Lift max.height(mm)	1600	3000
Minimum clamp height	520	520
Clamp width(mm)	1135-1450	1135-1450
Clamp length(mm)	1220	1220
Paper roll diameter	¢600-1000mm	¢600-1000mm
Load center (mm)	700	700
Weight (Kg)	560	640
Over size(mm)L*W*H	1900*1500*2000	1900*1500*1780
Channel request(mm)	Turn2100	Turn2100
Forward and Back request	1600mm	1600mm
Real wheels(mm)	2*¢80*70
Front wheels (mm)	2*¢150*50
Battery (V/Ah)	24/100
Charger (V/A)	24/15
Lifting motor (Kw)	1.6

1.Built in slip torque mechanism to ensure correct gripping pressure is applied preventing over tightening and damage to load.
2.Fitted with Rotating rubberised roller jaws to provide maximum grip and assist alignment.
3.Made of high-strength metel to ensure strong and stable clamping force.
FOR BEST QUOTE,WE WOULD LIKE TO KNOW:
1)What's your load capacity? -----We have 500kg available
2)What's your max lifting height?----We have 1.6-3meter available
3)What's your Max. roll diameter and Min. roll diameter?
4)How many quantity do you need?----MOQ is one
5)Quote which terms?----EXW factory price/FOB shanghai price/CIF your port
