Building Material Galvanized Steel Zinc Metal Profile C Purlin Channel Cold Roll Forming Machine

Product Description

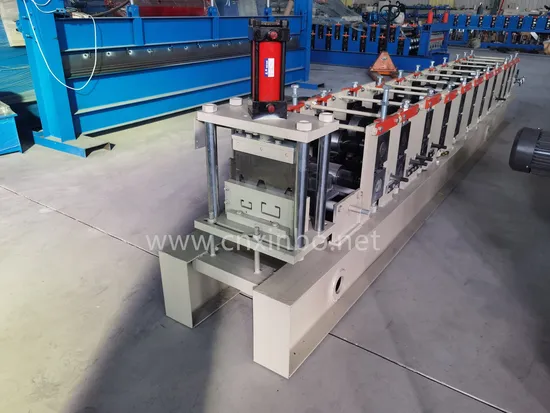

C Purlin Machine
Product Description

Processing Material	GI, Steel strip
Input Width(mm)	180--500
Formed Width(mm)	80--300
Processing Thickness(mm)	1.8--3.0
Material of Rollers	Gcr15
Diameter of Shaft	Ф80mm
Production Speed	0---15m/min
Roller Driven	Decelerating Motor+Chain Transmission
Cutting Model	Hydraulic Profile Cutting
Length Measurement	Encoder
Control Style	PLC
Operation Model	Button + Touch Screen
Total Power	15+11kw
Voltage	380V 50HZ or at buyer's request

Detailed Photos

Certifications
Packaging & Shipping

Packaging Details
1. whole line is nude pancking with waterproof cloth in container2. computer control cabinet with card board and waterproof cloth3. accessories with card box
PortXINGANG.TIANJIN. CHINA
Payment Terms
30% deposit by T/T, and the rest 70% should be balanced by T/T before loading into container and delivery.
Company Profile
Botou Xinbo Machine Making Co.,Ltd, is a manufacturer of roof/wall panel roll forming machine, C&Z interchange purlin machine, decking floor machine, EPS sandwich panel machine, shutter door and door frame machine, and all kinds of steel plate making machines products with well-equipped testing and strong technical force.
Xinbo machine making company is a 100% manufacturer which established since 2014We are a leading manufacturer for steel plate coiling machinery, roll forming andautomatic production lines. The mainly products are used in steel structure industry andconstruction industry. such as C&z shape purlin roll forming machine. load-bearingbuildina deckina plate roll formina machine. wall and roof rollforming machine used forhigh-grade steel structure residences; glazed roof panels roll forming machine, ridge captile roll forming machine. all kinds of C and U shaped channels roll forming machine, dooframes roll forming machine. roller shutter door forming machine. as well as differentkinds of decoilers, bending machine, cutting machine, slitting machine and so on.
Trade Show

FAQ
Q1.How about your price?A:Although we are brand name products,but our prices are very favorable andcompetitive.?Customer from all over the world to purchase our products, becauseour best price.
Q2: What's your payment?
A: Our Payment could be
(1) 100% T/T
(2) 30% in advance,others before shipment.
(3)Advance, others letter of credit.
Q3.Could you special design and produce for you?A: Sure,we have all kinds of professional engineers,Could design and produce special product according to customer requested.Such as: special Size, special control, or OEM,etc.
Q4.Do you looking for Agent?A: Yes, we're looking for the agent all over the world, please contact us forfurther discussion.
