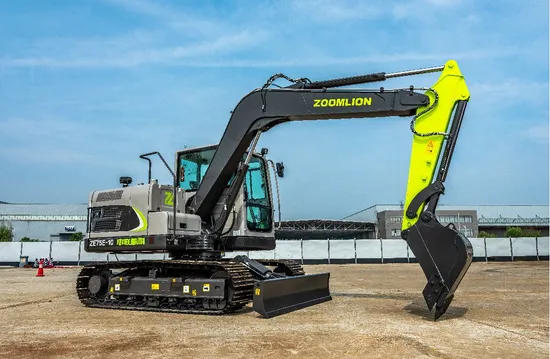

Zoomlion 7.5 Ton Crawler Hydraulic Excavator (ZE75E-10)

Product Description

Zoomlion 7.5 Ton Crawler Hydraulic Excavator (ZE75E-10)
Product Description
ZE75E-10 excavator adopts Zoomlion symbolic family painting, which is not only the external upgrading, but also the confident eye-catching declaration after machine upgrading.
Fuel consumption per hour has been further reduced, and work efficiency & fuel efficiency have been greatly enhanced thanks to the tailored load-sensing system. Three work modes can be optimally matched under corresponding applications, thus delivering enhanced work efficiency with saved energy.
Critical stress points on strengthened and thickened boom make the boom easily bear enormous pressure during construction. The D-ARCS bucket with reduced resistance and increased capacity has further prolonged bucket service life and lowered comprehensive fuel consumption. Innovated track roller design brings greatly enhanced machine stability.
The back-lift integrated rear hood design guarantees that all the maintenance and inspection points are easily accessible from the same place. Inspection and maintenance can be conducted comfortably to achieve shortened maintenance time. Special-purpose hydraulic oil with prolonged service life can save more than 50% maintenance cost for users. It is a good assistant for you
Product Parameters

Items		Units	ZE75E-10
Basic Technical Data	Operating Weight	kg	7500
	Standard Capacity	m³	0.3
	Slewing Speed	r/min	11.5
	Traveling Speed(high/low)	km/h	4.8/2.9
	Max. Drawbar Pull	kN	64.3
	Digging Force of Bucket	kN	54
	Digging Force of Stick	kN	40
Engine	Engine Manufacturer	/	YANMAR
	Engine Model	/	4TNV98-ZCSLKC
	Rated Power	kW/rpm	44/2200
	Displacement	L	3.3
	Emission Standard	/	EU Stage IIIA
Dimensions	Length	mm	6149
	Width	mm	2280
	Height	mm	2565
	Tail Slewing Radius	mm	1775
	Track Gauge	mm	1750
	Length of Track On Ground	mm	2200
Operating Range	Max. Digging Radius	mm	6270
	Max. Digging Reach	mm	6119
	Max. Digging Depth	mm	4046
	Max. Digging Height	mm	7003
	Max. Dumping Height	mm	5128
