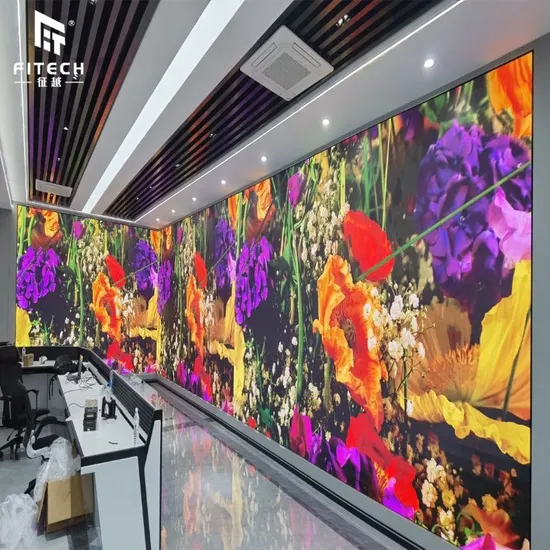

Indoor Display Flip COB Pixel Pitch 0.7/0.9/1.25mm Small-Pitch Splintered LED Screen Terminal

Product Description

LED Display Terminal
Based on a new generation of full-flip COB microdisplay technology, the LED small-pitch splintered screen of Tidal Yuexu series supports advanced HDR digital image technology, and has the characteristics of super large, ultra-thin, ultra-clear, ultra-bright, ultra-reliable, ultra-protection, etc. The flip-flip COB small-pitch ultra-clear display will become the ultimate solution for large scene display in the era of micro display.
Product FeaturesFlip COB packaging technology, welding parts from "point" to "surface", stable and reliable performance16:9 design, point-to-point matching FHD/4K/8K display115% ultra-wide field of view, 170 degrees viewing Angle, arbitrary Angle color, brightness consistent colorPanel surface anti-glare anti-blu-ray technology, effectively reduce light intensity radiation, look comfortableHigh density and lightweight box design, aluminum alloy integrated die-casting molding, strong toughness, high precisionBlack optical processing technology, high ink consistency, 10,000:1 ultra-high contrast, the picture more deep immersionProtection level IP65, corrosion, collision, shock, moisture, water, dust, salt spray, anti-staticUnique temperature control and heat dissipation technology, the surface temperature of the screen body is uniform, and the power consumption is reduced by 20% compared with the conventional display HDR(High Dynamic Range image) digital image technology, image details are rich, static and high dynamic picture quality fine losslessFull front maintenance, no need to reserve a maintenance channel on the back.
Product Specification

Module Composition	Pixel Composition	RGB
	Package Method	Flip COB
	Pixel Pitch (mm)	0.78/0.9375/1.25
	Pixel Density (points /m2)	1638400/1137777/640000
	Module Resolution (W×H)	192×216/160x180/120x135
	Module Dimensions (W×H) (Mm)	150×168.75
Cabinet	Unit Size (W×H×D)	600×337.5×32
	Unit Resolution (W×H)	768×432/640x360/480x270
	Unit Weight (kg)	4.3
	Maintenance Method	Front maintenance
	Protection Level	IP65 (front)
	Cabinet Material	Die-cast aluminum
	Flatness	0.15 mm
Optical Parameters	Point-By-Point Correction	Support
	Flash Storage Function	Support
	Brightness (cd/m2)	Standard 600 (Customizable to 2000)
	Color Temperature (K)	3000-10000 adjustable
	Viewing Angle	Horizontal 170°/ Vertical 170°
	Brightness Uniformity	≥97%
	Chroma Uniformity	±0.003Cx, within Cy
	Color Gamut	≥115%
	Contrast Ratio	≥10000:1
Electrical Parameters	Maximum Power Consumption (W/M2)	≤350
	Average Power Consumption (W/M²)	≤112
	Operating Voltage	AC 100-240V (50/60Hz)
Handling Performance	Number Of Scans	64/54/60
	Image Frame Change Rate (Hz)	50/60
	Refresh Rate (Hz)	3840
	Grayscale (bits)	16
Usage Parameters	Lifespan Typical Value(h)	≥100000
	Operating Temperature/Humidity Range	-10ºC - 40ºC / 10%-90%RH (non-condensing)
	Storage Temperature/Humidity Range	-20 ° C - 60 ° C / 10%-90%RH (non-condensing)

Note:The above parameters are typical values of the product. Different batches of products may vary. The actual parameters of the product are subject to the factory inspection report.The product will be continuously optimized and iterated during the production process, and the product specification sheet will be adjusted at any time. Consult regional distributors before purchasing.For customized products, the specification sheet needs to be reissued.
