CR52-BKPE-4U-DC 02351596 Integrated DC Chassis Components (NE40E-X3) -4u, Including Dual DC Power for H W

Product Description

Product Description
CR52-BKPE-4U-DC 02351596 Integrated DC Chassis Components(NE40E-X3)-4U,Including Dual DC Power for h w Description Part Number Model First Supported Version Remarks

Integrated DC Chassis Components(NE40E-X3)-4U,Including Dual DC Power	02351596	CR52-BKPE-4U-DC	V800R007C00	-

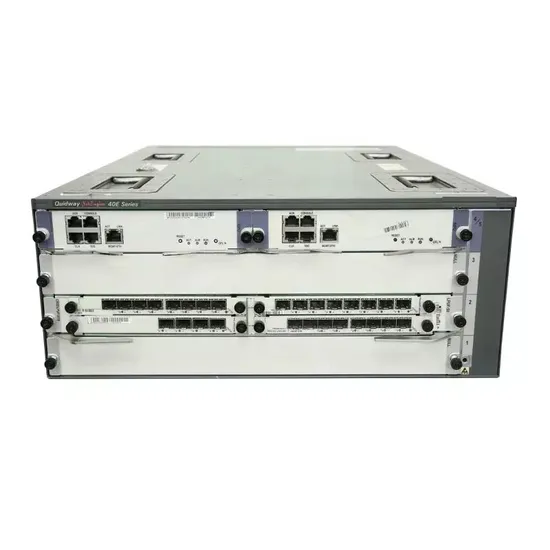

Detailed Photos


Product Parameters
Item Specification

Cabinet installation standards	Can be installed in a standard 19" 800 mm-deep cabinet. A H w 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)]	175 mm x 442 mm x 650 mm (6.89 in. x 17.40 in. x 25.59 in.)
Chassis height [U]	4 U
Weight without packaging (base configuration) [kg(lb)]	15 kg (33.07 lb)
Weight without packaging (full configuration) [kg(lb)]	42 kg (92.59 lb)
Typical power consumption [W]	800 W (fully configured with LPUF-51s) 920 W (fully configured with LPUF-120s) 1239 W (fully configured with LPUF-241s)
Typical heat dissipation [BTU/hour]	2595.5 BTU/hour (fully configured with LPUF-51s) 2984.9 BTU/hour (fully configured with LPUF-120s) 4019.8 BTU/hour (fully configured with LPUF-241s)
MTBF [year]	27.44 year
MTTR [hour]	0.5 hour
Availability	0.99999792
Power supply mode	DC built-in
Maximum number of power chassis inputs	(1 channel/PEM)*2 PEM=2 channels
Rated input voltage [V]	-48 V/ -60 V
Input voltage range [V]	-38.4 V to -72 V
Maximum input current [A]	42 A/single-module
Maximum input cable diameter [mm²]	25 mm²
Front-end circuit breaker/fuse [A]	50 A
Noise at normal temperature (acoustic power) [dB(A)]	ETSI-compliance (<72dBA @ 23°C (73.4°F))
Number of slots	5
Number of service board slots	3
Switching capacity	1.08 Tbps
Redundant MPUs	1:1
Redundant power supply	1+1
Redundant fans	Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	-5°C to 55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (86°F/hour)
Storage temperature [°C(°F)]	-40°C to 70°C (-40°F to 158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	Less than 5000 m (16404 ft.)
