W12S Series 4-Roller Plate Bending Machine Plate Rolling Machine

W12S Series 4-Roller Plate Bending Machine Plate Rolling Machine

US$99.00-99,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
W12S-12X3200
Voltage
380V/50Hz/3pH or customized
Transport Package
Steel Pallet
Specification
W12S-12X3200
Trademark
HAVEN
Origin
China
HS Code
8459
Production Capacity
30 Units/Month

Product Description

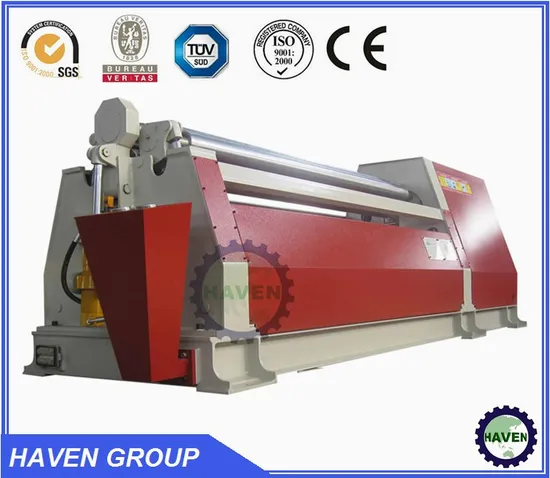

W12S Series 4-Roller Plate Bending Machine Plate Rolling Machine
Main functions:
The machine is with 4 Rollers.
Top roller can only rotary movement, can not up-down.
Bottom rollers can move up-down and Rotary, to clamp the steel plate.
2 Side rollers can move up-down in ARC-Line type movement.
Hydraulic motor driving system,2 rollers ( Top roller and Bottom roller ) powered drive movement
Can do pre-bending and Cone bending.
PLC + Touch screen.
Main electric parts are SIEMENS.
Other parts are from China famous brand.
Main specification:
Model Working
Length
(mm)
Max.
Thickness
(mm)
Pre-
Bending
(mm)
Upper
(Φmm)
Under
(Φmm)
Side
(Φmm)
Motor
Power
(km)
dimension(cm)
W12S-4x2000 2000 4 3 160 140 120 2.2 392x86x114
W12S-4x2500 2500 4 3 190 170 150 3 402x125x138
W12S-4x3200 3200 4 3 210 190 170 7.5 466x132x137
W12S-4x4000 4000 4 3 270 250 210 5.5 600x143x152
W12S-6x2000 2000 6 4 190 170 150 3 402x125x138
W12S-6x2500 2500 6 4 210 190 170 7.5 466x132x137
W12S-6x3200 3200 6 4 230 210 190 7.5 516x132x137
W12S-6x4000 4000 6 4 300 270 210 5.5 592x149x173
W12S-8x2000 2000 8 6 210 190 170 7.5 416x132x137
W12S-8x2500 2500 8 6 230 210 190 7.5 466x132x137
W12S-8x3200 3200 8 6 270 250 210 11 551x143x152
W12S-8x4000 4000 8 6 330 300 240 7.5 597x161x184
W12S-10x2000 2000 10 8 230 210 180 7.5 416x132x137
W12S-10x2500 2500 10 8 270 250 210 11 500x143x152
W12S-10x3200 3200 10 8 300 270 210 11 542x146x173
W12S-10x4000 4000 10 8 360 330 250 11 605x168x190
W12S-12x2000 2000 12 9 270 250 210 11 451x143x152
W12S-12x2500 2500 12 9 300 270 210 11 492x146x173
W12S-12x3200 3200 12 9 330 300 240 11 547x161x184
W12S-12x4000 4000 12 9 390 360 300 18 605x198x210
W12S-16x2000 2000 16 12 300 270 210 11 442x146x173
W12S-16x2500 2500 16 12 330 300 240 11 497x161x184
W12S-16x3200 3200 16 12 360 330 250 15 554x168x190
W12S-16x4000 4000 16 12 430 390 330 15 628x218x220
W12S-20x2000 2000 20 16 330 300 240 11 440x200x212
W12S-20x2500 2500 20 16 360 330 250 15 504x168x190
W12S-20x3200 3200 20 16 390 360 300 18.5 552x198x210
W12S-20x4000 4000 20 16 460 420 360 18.5 664x258x230
W12S-25x2000 2000 25 20 360 330 250 15 447x161x184
W12S-25x2500 2500 25 20 390 360 300 18.5 502x198x210
W12S-25x3200 3200 25 20 430 390 330 22 578x218x220
W12S-25x4000 4000 25 20 510 460 390 22 664x296x300
W12S-30x2000 2000 30 25 390 360 300 22 479x218x220
W12S-30x2500 2500 30 25 430 390 330 22 528x218x220
W12S-30x3200 3200 30 25 460 420 360 30 614x258x230
W12S-30x4000 4000 30 25 540 510 440 30 700x305x300
W12S-35x2000 2000 35 28 430 390 330 30 430x250x245
W12S-35x2500 2500 35 28 460 420 360 30 564x258x230
W12S-35x3200 3200 35 28 510 460 390 37 630x258x230
W12S-35x4000 4000 35 28 650 550 480 45 650x300x300
W12S-40x2000 2000 40 32 460 420 360 37 450x250x245
W12S-40x2500 2500 40 32 510 460 390 45 480x250x245
W12S-40x3200 3200 40 32 540 500 440 45 650x305x300
W12S-50x3200 3200 50 40 650 550 480 55 650x360x350
W12S-60x3200 3200 60 48 760 680 580 75 750x450x415
