Leyo 5 Axis CNC Machining Center 5 Axis Machine 5 Axis Milling Machine 5 Axis Drilling Tapping Center

Product Description

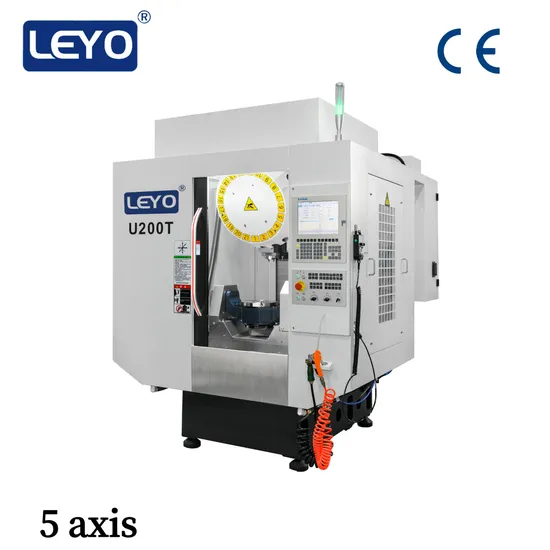

LEYO U-200T 5 Axis Machining Center Technical List
Items		Unit	U-200T
X/Y/Z axis travel		mm	600/400/320
X/Y/Z rapid moving speed		m/min	48/48/48
X/Y/Z rapid feeding speed		m/min	15
Maximum speed of X/Y/Z axis feed motor		rpm	3000
Rated power of X/Y/Z axis feed motor		kw	1.8/1.8/2.9
Locked rotor torque of X/Y/Z axis feed motor		Nm	11.5/11.5/18.6
A-axis rapid movement		rpm	200
C-axis rapid movement		rpm	300
A/C rated torque		Nm	·
A/C brake air pressure		MPa	0.5-0.6
A/C brake tightening torque		Nm	≥250/≥150
Disc diameter		mm	240
Maximum workpiece diameter		mm	300
Tilt axis rotation angle		deg	±110°
Working table (L*W)		mm	Φ260
Working table max load		kg	30
Distance from spindle center to column guide rail surface		mm	420
Distance from spindle end face to turntable		mm	90-410
Spindle taper hole			BT30
Spindle type*			Direct
Rated power of servo main motor		kw	3.7
Servo main motor 30 minute maximum power		kw	5.5
Spindle speed*		rpm	0-20000
Continuous rated torque of servo main motor		Nm	11-22
Dynamic balance method of spindle components			G1
Spindle end face runout accuracy		mm	0.003
Spindle radial runout accuracy		mm	Near end 0.003mm
Knife handle standard			BT30
Pulling nails standard			P30(45º)
Controller*			Lynuc
Tool magazine capacity *		T	21
X/Y/Z position accuracy			±0.01
X/Y/Z reposition accuracy			±0.005
A/C positioning accuracy		arcsec	6
Machine weight		kg	3000
Machine size		mm	2350*1950*2750
Guideways Type			X30 × 4 Sliders
			Y30 × 4 Sliders
			Z30 × 4 Sliders
			Ball linear track

FAQ: 1. Why shoe LEYO 5-axis simultaneous machining center
Our simultaneous 5-axis technology raises the limits on the types of part geometries you can machine. By empowering you to produce highly complex components in a single setup, our 5-axis machines unbridle the imaginations of your engineers and redefine your overall capabilities.
2. LEYO 5-axis simultaneous machining centeradvantage
1.Machine complex shapes in a single setup for increased productivity
2.Save time and money with less fixture preparation
3.Boost throughput and cash flow, while shortening lead times
4.Higher part accuracy because the workpiece does not move across multiple workstations
5.Ability to use shorter cutting tools for higher cutting speeds and less tool vibrations
6.Achieve superior surface finishes and overall better part quality LEYO cnc machine manufacturer located in Houjie Town, Dongguan City, Guangdong Province, China, is a manufacturer of CNC machine integrating industry and trade. Its main products are high-end 3-5 axis CNC milling machines like high-speed cnc milling machines, gantry milling machines, etc; cnc machining center like vertical machining center, horizontal machining center, vertical horizontal dual-use machining center, compact machining center, etc; and cnc lathe, etc. These machines are mainly used in the producing and machining of parts and molds in 3c electronics, automobiles, instruments and meters, electronic appliances, medical devices, aerospace, machinery manufacturing, new energy vehicles, 5G communication industries and other industries. Our company has obtained several utility model patents and invention patents, CE certificates, ISO9001 quality management system certificates, and factory strength certification from SGS, TUV and other international testing and certification institutions. Our machinery and equipment are sold to the domestic and foreign markets. The main domestic markets are Guangdong, Zhejiang, Fujian, Sichuan and many other provinces. The international market is mainly exported to Europe, Central Asia, Southeast Asia and other countries. Our goal is to provide the world with high-quality CNC machine. Recruitment of agents The benefits of being LEYO agent:
1.Get better wholesale price.
2.Accumulating a certain amount of sales revenue can qualify for machine installment payments and additional commissions or gift.
3.And we will provide local customer resources for agents.We will invite customers to visit the agent company to check the machines.
Requirement:
1.Offer us your company name,web,shop information.
2.Have ability to import equipment from China and can provide local after-sales service to customers.
1.Offer us your company name,web,shop information.
2.Have ability to import equipment from China and can provide local after-sales service to customers.
About LEYO service
1. Customized service
1.Design logo for free or remove logo services.
2. Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services.
3. Customized machine configuration for free. Customized according to customer configuration requirements, such as the brand and model of screw rod and linear guide rail, the brand power and speed of spindle, the brand and model of controller, and the type of tool magazine.
4. Customized special machines for free. If you have special requirements on the material, process, precision and efficiency of the products you are processing, we can customize the models based on the products you are processing.
5. Free design of automatic production line.
The customization quantity and price will vary according to the complexity of customization.
2. One stop procurement service
Provide accessories, four five axis turntable, tailstock, tool setting instrument, measuring head, chain chip conveyor, etc. Consumables like tools, tool handles, tool carts, tool boxes, etc.
3. Free online and offline after-sales service
The warranty period of all models is one year, and spare parts and online and offline after-sales services are provided free of charge within one year. However, the travel expenses of after-sales personnel need to be paid by the customer, such as transportation, board and lodging.Lifetime free online after-sales technical guidance service.
4. Fast delivery service
If you need it urgently, please tell me the expected delivery date, and we can arrange it according to customer needs. The fastest production time is 7 working days.
