Qm Customized High Quality HVAC System Ceiling Type, Cabinet Type Fresh Water Chiller Machine Equipment

Product Description

Detailed Photos Matsushita compressor
The fully enclosed compressor has the characteristics of high efficiency and reliability, reducing vibration transmission and noise transmission, and providing maximum cooling capacityWater PumpsThe outlet pressure can ensure long-distance transportation and efficient operation, stable flow rate and high operation efficiency, compact design makes installation and maintenance more convenient, while stable and reliable operationFinned Type CondenserFin condenser plays a core role in the chiller, it uses the fin structure to increase the heat dissipation area, effectively
condense the high temperature refrigerant vapor discharged by the compressor, improve the heat dissipation efficiency, and ensure the efficient and stable operation of the chiller, which is an indispensable part of the refrigeration system.Emerson filterEffectively filter the impurities and water in the refrigerant and frozen oil, improve the stability of the system operation, prevent the occurrence of failures, ensure the cooling effect and operating efficiency of the chiller, and extend the service life of the overall equipment.Cooling window Through the window, the heat generated inside the chiller can be effectively discharged, preventing the equipment from overheating, ensuring the continuous and stable operation of the chiller, while extending its service life and ensuring its efficient performance. Efficient Cooling System By generating strong winds to accelerate air flow, enhance the heat dissipation effect. It can ensure the stable operation of the unit in high temperature and humid environment, prevent the aging of components and performance decline, and contribute to the long-term operation and maintenance of the unit.High and Low Pressure Protection SystemMonitor and adjust the power supply voltage to ensure the stable operation of the chiller within the appropriate voltage range. Once the voltage is too high or too low, the protection system will quickly cut off the power supply to avoid equipment damage, thereby extending the service life of the chiller and ensuring its efficient operation.Product ApplicationInjection molding industry Chemical industry Printing industry Food Industry Laser industry Medical industryProduct Parameters

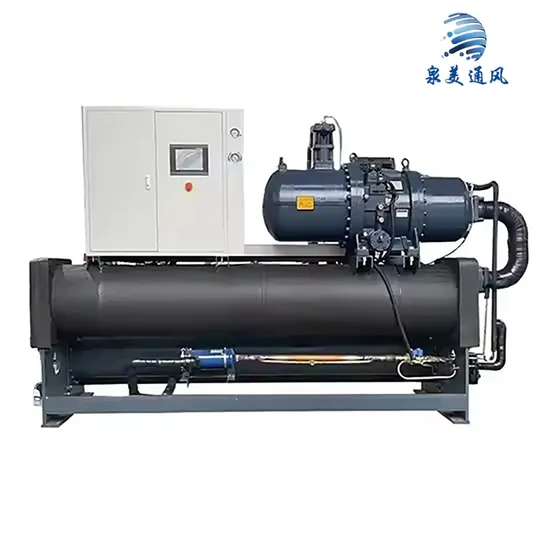

Water Cooled Screw Chiller Recirculating Chiller Industrial Cement Cooling
Model		TC-90W	TC-125W	TC-180W	TC-240W	TC-300W
Cooling Capacity	Kw	92	126	177	236	295
	USRT / Ton	26.2	35.8	50.3	67.1	83.9
	Kcal/h	79120	108360	152220	202960	253700
Power Supply		3PH-380V-50Hz or according to customer local need
Refrigerant	Type	R22 / R407c / R134a /R507
	Control	Thermostatic expansion valve
Compressor	Type	Semi-hermetic screw type
	Power (Kw)	23	32	42	57.5	70
	Start Type	Y-△
	Capacity Control	25-50-75-100(%)
Evaporator	Type	Shell and tube
	Water flow ( m3/h)	15.8	21.6	30.3	40.5	50.3
	Inlet / Outlet	DN100	DN65	DN80	DN80	DN100
Condenser	Type	Shell and tube
	Cooling flow (m3/h)	21.7	29.8	41.3	55.3	68.8
	Inlet / Outlet	DN50	DN65	DN80	DN80	DN100
Protect System	Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L(mm)	2300	2500	2500	2800	3200
	W(mm)	750	750	750	800	800
	H(mm)	1500	1500	1500	1500	1500
Weight	KG	660	700	975	1150	2000

Company Profile
Packaging & Shipping
FAQ
1.What is the use of assistant tank in solar water heater?
A special quality assistant tank is design to control moxing of hot and cold water. Assistant tank increase the efficiency of
systems. Also there is no need of additional air vent, which reduce the cost of plumbing.
2. What is auxiliary tank solar geyser?
Assistant Tank For Solar Water Geyser is specially designed for non-pressure solar water heaters, it works mechanically without manual operation, avoiding water overflow when manual water refilling. With an assistant tank the solar water heater is always full of water.
3. What is the maintenance required?
Solar water heaters with assistant tank require minimal maintenance. Regular cleaning of the collector and the assistant tank is recommended to ensure the system runs efficiently. An annual check-up by a professional is also recommended. 4. what about your packages? A: Solar Energy Collector standard package: FCL (full container loading): Inner poly bag with outer export carton packing LCL (less than container loading):Plywood case + carton packing5 .What about your solar water heater? A: All of our solar water heater are designed according to the requirements from mar kets,Our engineers can design the system you need to match different roof.6:How can i get the after-service? A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our solar water heater it is lifelong maintenance.7 :Do you have inspection procedures for solar water heater? A:100% self-inspection before packing.
