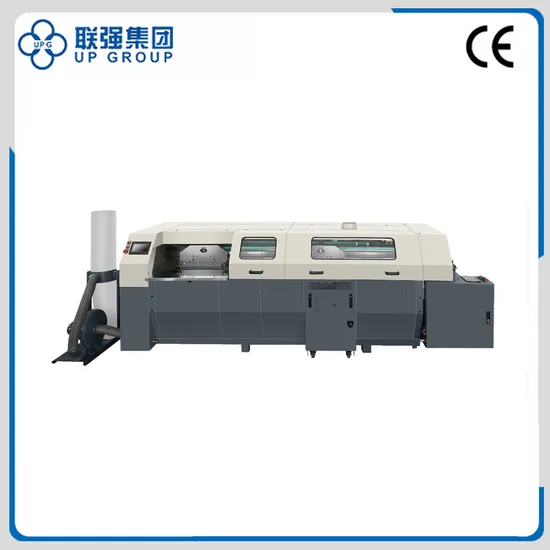

LQ-BT50/5F(PUR) Ellipse Binding Machine A Kind of Environmental Protection Binding Machine

Product Description

Product Description LQ-BT50/5F(PUR) Ellipse binding machine is multi functions binding machine with advanced technology in 21th century.lt can paste paper scrip and gauze.And also can be used for sticking big sizes cover in the meantime or use alone.The Interchange between EVA and PUR s very fast.
This machine adopted a computer operation system,a mil chamber construction, side rubber wheel, indentation wheel, book-wrapping table, cover size adiuster, auto computer setter. As a result it can finish all the processes in one minute. It is controlled by a frequency controller and PLC. It is assembled with photoelectric cells,auto tester and touch screen displayer. There is digital display function in the glue breaking function back and forth,mil back,glue breaking glue pot and covering adjustment in gluing in the back.The press track wheel has micro adiustment functions constantly,and the book acceptance structure is level method and protects the book back formine in better wey This machine not only uses lock line suing packaging.but also unwiring gluing packaging which is the deal equipment for the unwiring gluing packaging and wiring packaging in the printing factories of wide-range universities.
This machine is offered the book core by manpower and automatically finishes 10 procedures below:
1. Milling back; (Automatic adjust)
2. Opening groove;
3. Back mucus coating; (Gluing pot automatic adiust)
4. Side mucus coating; (Automatic Adjust)
5. Cover and book core compossing; (Automatic adjust)
6. Cover impressing;(Automatic adjust)
7. Cover packing;(Automatic adiust)
8. Finshed-product output; (Automatic adjust)
9. Book spine pressing;
10. Cooling,till final nice products.


Product Parameters

Binding size	Max:450*300mm Min:150*105mm
Binding thickness	2-50mm
Binding speed	Max:2300 Books/Hour
Power required	14Kw
Weight	2100Kg
Dimensions	3900*1330*1250mm

Company Profile
Superiority
Our Customers
Exhibitions
Our Services Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
