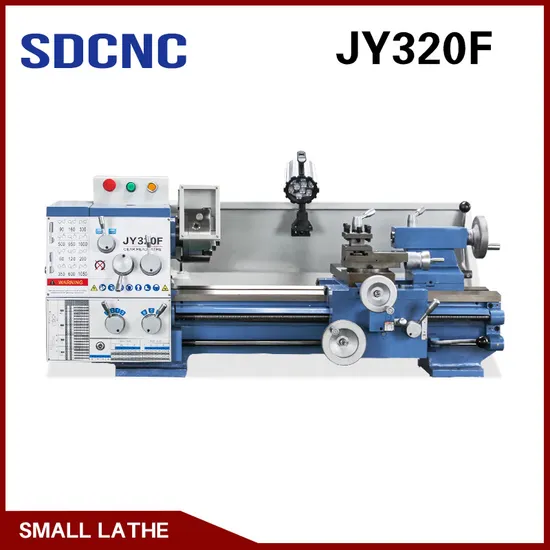

Sdcnc Jy320f Mini Lathe Turnstile Brake Turning Tool Turret EDM Lathe Machine
| US$1,350.00-1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JY320F
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Heavy Duty Lathe Machine
CNC or Not
Nomal
Core Components
Bearing, Gear, Motor
Name
Small Lathe
Transport Package
Wood Packing
Specification
1320*520*500
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
1320.00cm * 520.00cm * 500.00cm
Package Gross Weight
300.000kg
Product Description
Product Application This machine can turning ,drilling round bar work piece,process out circle ,inner bore ,cutting ,threading , drill hole ,reaming ,popular with small Workshop ,development,DIY hobby ,school for training .
Main Features
1) most economic ,widely useful household machine.
2) V-way bed is precision ground,bed surface super hardened.
3) Spindle is supported by precision tapered bearing.
4) Lathe headstock is constantly oiled during operating.
5) Longitudinal axis power feed for threading .
1.most economic ,widely useful combination machine .
2.V-way bed is precision ground
3.Spindle is supported by precision tapered bearing
4.Lathe head stock is constantly oiled during operating
5.Belt drive mill head get quiet operation
6.Mill head can be titled +-90 degree
7.Power longitudinal feed follow threading
8.Adjustable gibs for slide ways
9.Equipped with lead screw cover and work table
10.Change gear has large feed and threading function
11.Tail stocks can be off set for turning tapers
Product Parameters
| ITEM / MODEL | UNIT | JY320F | JY3600G | C6232A | C6236A | |
| MAIN MACHINE | Swing over bed | mm | Ф320 | Ф360 | Ф330 | Ф355 |
| Swing over carriage | mm | Ф200 | Ф240 | Ф195 | Ф220 | |
| Swing over gap | mm | | | Ф476 | Ф500 | |
| Width of bed-way | mm | | 186 | |||
| Distance between centers | mm | 600 | 800 | 1000 | ||
| SPINDLE | Taper of spindle | | M.T.5 | M.T.5 | ||
| Spindle diameter | mm | Ф38 | Ф38 (Option B type -- 51mm) | |||
| Step of speed | | 12 | 8 | |||
| Range of speed | rpm | 60-1600 | 80-2000 | 70~2000 | 84-1850 | |
| THREAD AND FEED SYSTEM | Metric thread | mm | 0.2-7 (22 kinds) | 0.4-7 (26kinds) | ||
| Inch thread | T.P.I | 2-48 1/n" (45 kinds) | 4-56 (34kinds) | |||
| Longitudinal feeds | mm/r | | 0.1-1.4 | 0.052-1.392 | 0.091-2.533 | |
| Cross feeds | mm/r | | 0.045-0.6 | 0.014-0.38 | 0.025-0.69 | |
| TAILSTOCK | Barrel travel | mm | 80 | 100 | 95 | |
| Taper of center | | M.T.3 | M.T.3 | |||
| POWER | Motor power | kw | 1.1 (1.5HP) | 1.5(2HP) | 1.5(2HP) | |
| SHIPPING SIZE | Machine(L×W×H) | mm | | 1480x720x730 | 1920×760×760 | |
| Weight (N.W / G.W) | Kg | 320 | 350/380 | 505/565 | ||
