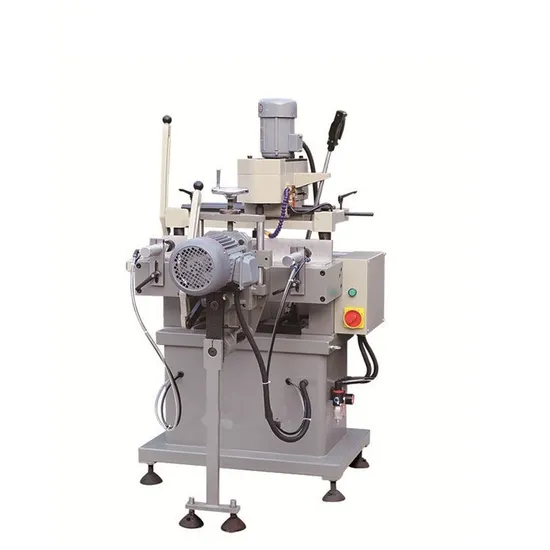

CE 2 Axis 4 Hole Aluminum PVC Window Slot Copy Router Drilling Machine

Product Description

CE 2 Axis 4 Hole Aluminum PVC Window Slot Copy Router Drilling Machine Product Description

EQUIPMENT FEATURES: - Used for copy-routing processing various kinds of holes, grooves and water-slots.
- It has features of compact structure and small volume, the air pressure drives the clamping - It can achieve continuous copy-routing milling, easy operation and safety.
Main Technical Parameter:

Model	CLZ3F-300*100	Power supply	380V 50Hz
Air pressure	0.5-0.8MPa	Diameter of the three-hole drilling head	Ф12mm
Input power	2.25kw	Centers distance of the three-hole drilling head	21.5*21.5mm
Cutter Diameter	Ф5,Ф8mm	Copy-routing range	300×100mm
Overall dimension	1000*1130*1600mm	Weight	about 260Kg

Details

Certifications
Company Profile
Jinan Truepro is a manufacturer of window machine, insulating glass processing machine
and curtain wall machine with well-equipped testing equipment and strong technical force.
Our factory have more than 16 years possesses R&D experience.Top 3 in Jinan, the largest area for window machines in China. We manufacture from raw material to final machine to control each machine quality.We believe that "IT'S THE BEST THAT FITS MOST."Every machine could be customized to meet your special requirement.We are KA store in ****** plateform,and SGS verified supplier, trade assurance to protect
your money in safe and deliver machine on time.
Packaging & Shipping
Our Advantages
FAQ
1. When can we arrange shippment?We usually arrange shippment within 15 days after getting deopsit,but customized machines
should be more than 25 days.2.What you can do if my machines have problems?1) We can send you free components to you if your machines are in guarantee time.2) We can send our engineers to repair your machines3.Do you provide equipment operation training?A: Yes. We can send professional engineers to the working site for equipment installation,
adjustment, and operation training. All of our engineers have passport.4. If I make Aluminum window and door, how many basic machines do i need?
