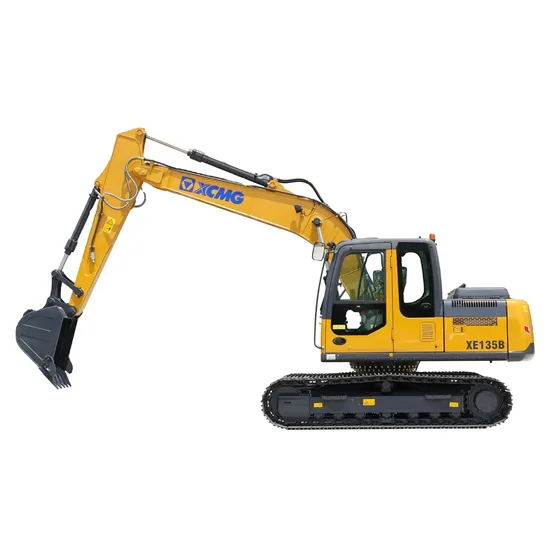

13 Ton Front End Digger Xe135b Mini Crawler Excavator
| US$28,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
XE135B
Usage
Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Condition
New
Operating Weight
13000kg
Maximum Digging Depth
5538mm
Max Digging Radius
8296mm
Ground Pressure
42kpa
Transport Package
Comply with Export Packaging Requirements
Specification
7770*2512*2880mm
Trademark
Top brand
Origin
Hubei
HS Code
8429510000
Production Capacity
50000units/Year
Product Description
Product Description*XE135B is a small excavator which is comprehensively upgraded and is applicable for a variety of working conditions. The product integrates energy saving, reliability and comfort, features flexible operation and low noise, and is widely used in mines, construction site, underground mining, landscape engineering, municipal construction
*The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
*The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
*The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
*The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
Product Parameters
| Description | Parameter value |
| Operating weight | 13000kg |
| Bucket capacity | 0.4-0.52m³ |
| Model | BB-4BG1TRP |
| No. of cylinders | 4 |
| Output power | 72.7/2200kw/rpm |
| torque/speed | 337.6/1600N.m |
| Displacement | 4.329L |
| Main pump | 2 |
| Rated flow of main pump | 2×123L/min |
| Pressure of prime valve | 31.4/34.3MPa |
| Pressure of travel system | 34.3MPa |
| Pressure of swing system | 25MPa |
| Pressure of pilot system | 3.9MPa |
| Fuel tank capacity | 250L |
| Hydraulic tank capacity | 130L |
| Engine oil capacity | 14L |
| Overall length | 7770mm |
| Overall width | 2512mm |
| Overall height | 2880mm |
| Width of platform | 2512mm |
| Length of crawler | 3660mm |
| Overall width of chassis | 2490mm |
| Width of crawler | 500mm |
| Track length on ground | 2910mm |
| Crawler gauge | 1990mm |
| Clearance under counterweight | 964mm |
| Min. ground clearance | 478mm |
| Min. tail swing radius | 1805mm |
| Max. digging height | 8641mm |
| Max. dumping height | 6181mm |
| Max. digging depth | 5538mm |
| Max. vertical wall digging depth | 4727mm |
| Max. digging reach | 8296mm |
| Min. swing radius | 2335mm |
| Length of boom (Standard) | 4600mm |
| Length of arm (Standard) | 2510mm |
| Bucket capacity (Standard) | 0.52m³ |
| Bucket capacity (Optional) | 0.4m³ |
