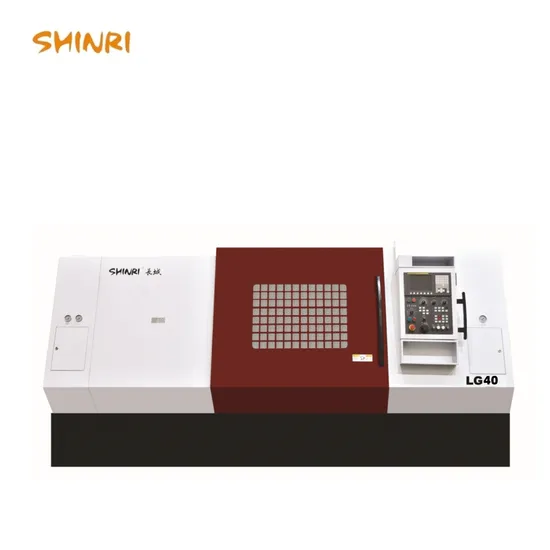

LG40 CNC Slant Bed Lathe Turning Center Maximum Turning Length 1500mm Machine Tool

Product Description

Product Description
1.LS series CNC lathe are high accuracy, high speed and high efficiency processing equipment from our company.
2.The machine tilt 45°horizontally, has the advantage of compact structure, rational layout, well chip removal performance, operation and pleasant and so on.
3.High precision ball linear guide pair is configured vertically and laterally, result in high rigidity and good dynamic performance.
4.The whole machine adopts modular design and can meet the different functions and configuration requirements of different customers.
5.Well-designing water tank and high lift centrifugal pump is adopted to realize strong cooling for parts and chip removal effect. Product Parameters

Item	Specification	Unit	LG16A	LG20A	LG32	LG40	LG63
Machining capacity	Max. swing over bed	mm	Φ400	Φ500	Φ630	Φ670/Φ630	Φ800/Φ760
	Max. swing diameter over saddle	mm	Φ280	Φ300	Φ420	Φ460	Φ640
	Max. turning diameter	mm	Φ360	Φ400	Φ600	Φ600	Φ800
	Max. turning length	mm	500	400/650/1000	750/1200/1800	1500/2500	1500/3000
Travel	Max. travel X axis	mm	195	210+30	310+30	350	460
	Max. travel Z axis	mm	590	500/750/1100	850/1300/1900	1710/2580	1740/3150
Spindle	Spindle speed	r/min	5000	3500	2500	2000	1800
	Centering journal taper of spindle		14° 15″	14° 15″	14° 15″	14° 15″	14° 15″
	Tapwe of hole in spindle		Morse6#	Metric system 80	Metric system 100	Metric system 120	Metric system 120
	Spindle hole diameter	mm	Φ55	Φ65	Φ85	Φ100	Φ110
	Front axis dimension of spindle	mm	Φ90	Φ110	Φ140	Φ170	Φ170
	Distance from spindle center to bed surface	mm	230	300	360	360	455
	Distance from spindle center to the ground	mm	950	950	1050	1060/1150	1200
Tailstock	Max. travel of tailstock quill	mm	80	100	140	180	220
	Diameter of tailstock quill	mm	Φ85	Φ100	Φ140	Φ	Φ180
	Taper of hole in mandrel	Morse	Morse3#	Morse4#	Morse5#	Morse5#	Morse6#
Chuck	Hydraulic chuck diameter		8″	8″	12″	15″	18″
Feed rate	Rapid rate (X/Z)	m/min	16/20	18/20	12/16	9/13	10/10
	Feed rate (X/Z)	mm/min	0.001-10000/ 0.001-12000	0.001-12000/ 0.001-16000	0.001-12000/ 0.001-16000	0.001-12000/ 0.001-16000	0.001-12000/ 0.001-16000
Control system	CNC system		GSK	FANUC 0I-TF	FANUC 0I-TF	FANUC 0I-TF	FANUC 0I-TF
	Power of spindle motor	kW	5.5/7.5	11/15	18.5/22	22/30	22/30
	Servo motor of X axis	Nm	6	8	12	22	22
	Servo motor of A axis	Nm	10	12	22	30	30
Turret	Turret type		Electric	Electric	Electric	Hydraulic	Hydraulic
	Tool stations	tools	8	12	12	12	12
	OD shank size	mm	25×25	25×25	32×25	32×25	32×32
	Max. diameter of boring bar	mm	Φ40	Φ40	Φ50	Φ60	Φ80
Machine weight		t	2.6	4.8/5.3/5.8	8/9/10.5	12.6/14.8	14.5/20.5
