EV2 Static Deformation modulus tester Ev2 Tester Soil Testing Equipment

Product Description

Product Description

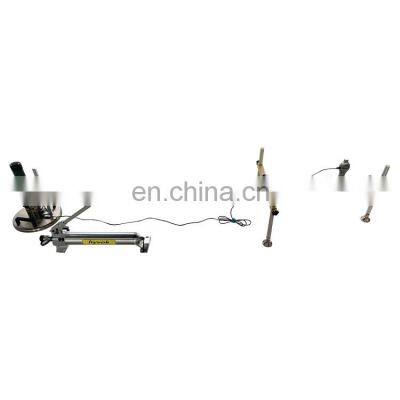

Product Usage and FeaturesEv2 Plate Bearing Test Set Static Deformation Testing MachineUSAGE OVERVIEW:Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.PRODUCT FEATURE:1.Imported sensors and some components are used, which has high test accuracy and more reliable test data.2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltagestabilization.3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data.4.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environments;5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.6.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.7.USB transmission interface, easy to connect with the computer.ParametersProductStatic Deformation Testing Plate Bearing Test SetApplicationEffective depth0~ 500mmWorking ambientWorking ambient -10℃~40℃ Humidity <90%HRElecteic sedimentation meterSizeScreen size:3inchOverall size:100×205×40mmNet weight:0.8kgStorage amount400 groups testing curvePowder supplyLithium battery, over 18hrs continuous work timeDisplay methodChinese/EnglishPrinterConnection methodWireless Bluetooth printerTransducerPressure range100kNDisplacement range25mmDisplacement resolution0.01mmMeasure deviceBearing plateDiameter:300mmThickness:25mmWeight:17.5kgLoading deviceHydraulic pump:100kNhigh pressure tube:2mOil cylinder extensible rod:1*90mm,1*120mm,1*160mm,1*160mm,2*60mmSedimentation measure deviceThree point frame (with flexible and rotary lever arm, adjustable base)Dimension:2320*570*420mmWeight:12.5kgProduct DetailsApplicationContact USCangzhou Lovely Technology Co., Ltd Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years. With advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ? Get our in-time reply via email or telephone or instant messenger; Get best product with excellent quality and competitive price; One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; Feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; Easily make the payment via West Union, Paypal, T/T for small value order;
