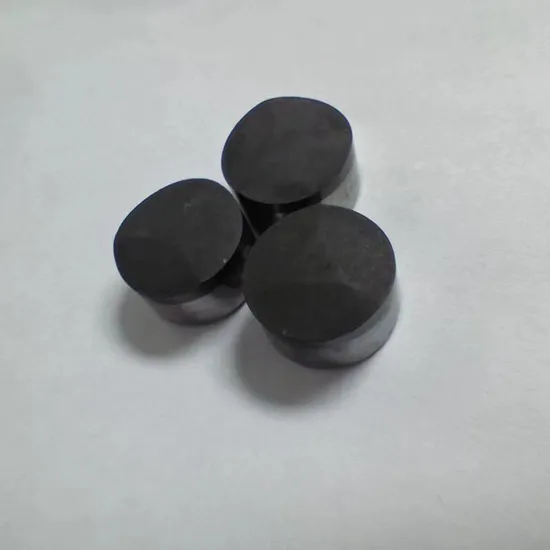

1304# 1308# 1613# 1913# PCB Cutters for PDC Bits Drilling Very Good

Product Description

Diamond composite sheet is a composite material composed of diamond and cemented carbide matrix. It has the characteristics of high hardness and good wear resistance. It is widely used in oil drilling, geological exploration, coal drilling and mining drill bits and machining tools.
Drilling and mining diamond-like composite sheet: suitable for soft to medium-hard geological drilling, with high impact toughness and thermal stability, heat-resistant temperature up to 750 ºC (two minutes), such products are available with flat surfaces and various grooves Surface combined type, groove type, grinding, polishing, chamfering, etc. can be designed according to user needs, and products with special shapes can be provided.
Mechanical tool diamond-like composite sheet: suitable for cutting and machining of high-hardness alloys, wood, ceramics and other non-metals, non-ferrous metals and other metals, with high hardness and wear resistance, high cutting accuracy, and can be customized according to users. If necessary, the product can be processed into rectangular, triangular, fan-shaped and other shapes, which can be used to make wear-resistant devices, drill bits, and drill teeth (with spherical and conical shapes).
Features of diamond compact sheet:
1. By introducing international technology, strengthening the cultivation of its own technology development force, adopting new high-efficiency catalysts and new processes, the diamond composite sheets produced have a variety of tooth structures
2. The interface is firm and uniform,
3. It has the characteristics of high wear resistance, thermal stability and strong impact toughness.The current development directions of diamond compacts mainly include:
1. The polycrystalline diamond layer is continuously thickened, from less than 1mm at the beginning to 2-4mm now, and the life of the product is also improved.
2. The diamond grains are getting finer and finer, and the comprehensive performance of wear resistance and impact resistance is improved.
3. Improve thermal stability by optimizing process or removing Co, adding heat-resistant layer and other processes.
4. Optimize the interface structure and improve the interface stress.
5. The diameter of the product is continuously increased to improve the synthesis efficiency.
6. Improve the sintering effect and reduce the performance difference.Synthetic diamond composite sheet is a superhard material. This super word is not specific and has a wide range. Superhard materials are materials with high Rockwell hardness (HR), Brinell hardness (HB), and Vickers hardness (HV). General 45# just HR is 30-60, super hard natural diamond. This concept covers a wide range, including high-hardness steel, high-hardness ceramics, artificial diamonds, and more. With the advancement of technology, a new type of diamond composite sheet has been developed in the industry, including the following special-shaped sheets, such as roof ridge type, helmet type, bread slice, etc., which greatly improves the impact toughness of the diamond composite sheet without affecting the wear ratio. , promoting the diamond compact technology to a new levelDetection and analysis:
1.Direct reading spectrum analysis,
2.Microhardness detection,
3.Metallographic microscopic observation,
4.Carbon and sulfur analysis and detectionSpecification of diamond cutters PDC cutters
Common models of diamond compacts:1304 1308 1313 1613 1616 1913 etc

Dimension Code	Diameter (mm)	Height (mm)	Polycrystalline table thickness (mm)	Polycrystalline chamfer (mm)	Carbide chamfer (mm)	HSCODE
0808	8.00±0.03	8.0±0.1	2.1±0.2	0.40±0.1	0.76±0.25	8207191000
1008	10.00±0.03	8.0±0.1	2.1±0.2	0.40±0.1	0.76±0.25
1305	13.44±0.03	5.0±0.1	1.5±0.2	0.35 x 45°	0.5 x 45°
1308	13.44±0.03	8.0±0.1	1.5±0.2	0.35 x 45°	0.5 x 45°
1313	13.44±0.03	13.2±0.1	2.1±0.2	0.40±0.1	0.76±0.25
1608	15.88±0.03	8.0±0.1	1.5±0.2	0.35 x 45°	0.5 x 45°
1613	15.88±0.03	13.2±0.1	2.1±0.2	0.40±0.1	0.76±0.25
1616	15.88±0.03	16.3±0.1	2.1±0.2	0.40±0.1	0.76±0.25
1916	19.05±0.03	16.3±0.1	2.1±0.2	0.40±0.1	0.76±0.25
Remarks:Customized Specifications Upon request

QualityISO 9001:2008
Packing: plastic box
