High Quality Wood Rounding Machine

Product Description

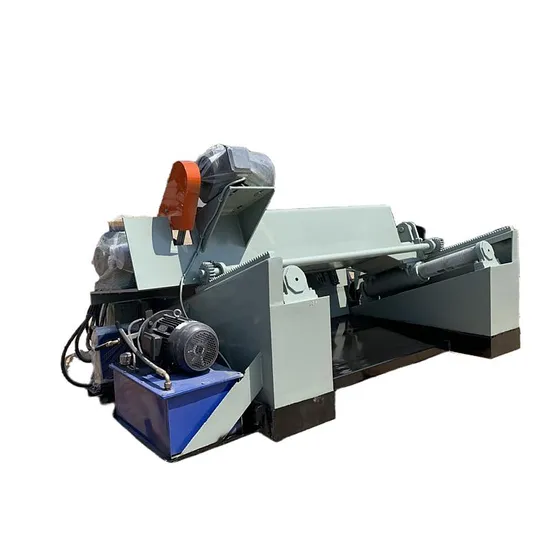

Machine Photos for Reference
Product Description
In the production of plywood or other artificial boards,
log debarking is the first step in wood processing,
and the wood log debarker is the machine for this step.
Machine Structure:
The wood log debarker consists of peeling, rounding, clamping structure, among others.
Usage:
Debarking and rounding logs to prepare for subsequent wood processing.
Product Parameters

1	Model	BWZY-L3300-D600
2	Wood log diameter	100 - 600 mm
3	Knife Blade Size	3300 * 160 * 13 mm
4	Double roller	diameter 200 mm, up barbed, bottom spike
		350 # reducer, 2 pieces
		11 KW motor, 2 pieces
5	Single Roller	diameter 180 mm
		350 # hardened reducer, 2 piece
		11 KW motor, 2 piece
6	Hydraulic station	7.5 KW motor, 1 piece
7	Log correcting system	2.2 KW motor, 2 pieces
		80 * 350 mm
8	Total motor power	55.9 KW
9	Machine Size	5700 * 2000 * 1600 mm
10	Machine Weight	7500 KG

Above parameters are just for reference, they can be customized according to requirements.

Machine Features
1. Made of high-quality materials, good rigidity and stability of the whole machine
2. Large diameter of single and double rollers, using dual row cylindrical roller bearings and specific tooth shape
3. Quick rounding, 45 m / min
4. Precise size processing, less than 1 mm ( depend on the type of wood ) , saving wood
5. Safe operation, there are some protective covers around the machine
6. Low energy consumption
7. Environment friendly, the bark can be used to rise fire, or for providing a natural and beautiful decorative effect,
and to play an important role in horticulture, construction field.

Company Profile

Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,
plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood,
other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3-Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications


FAQ
Frequently Asked Questions
About Customization :
Product parameters are for reference, all of our products size, yield, color, etc., can be customized
Delivery date:
25-30 days
Price changes:
The price of the product will change according to the real-time price of the raw material
Nature of the Company:
We are a company integrating industry and trade, with our own factory
Can I visit the factory:
Welcome
