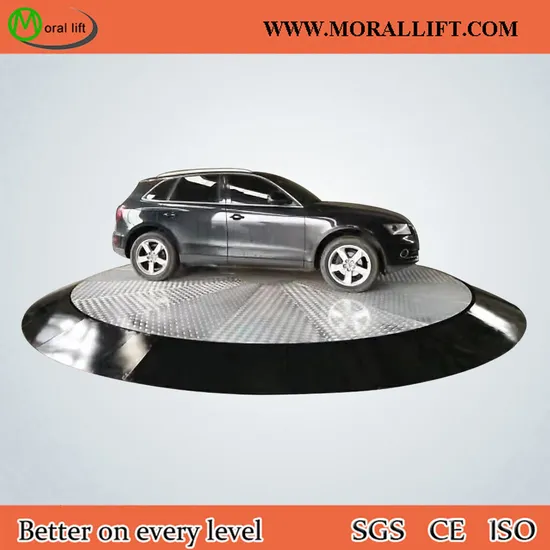

Narrow Limited Access Outdoor Driveway Parking Rotating Car Turntable

Product Description

Narrow Limited Access Outdoor Driveway
Parking Rotating Car Turntable
Specification:
1. For narrow and limited access roads
2. 360° rotation right/left
3. Height of the Turntable only120 mm
4. Outdoor installation is possible
Main feature:
1. Pin-gear drive mechanism, ensuring the smooth revolving, reliable operation, low noise,
Long life and minimal wear and tear.
2. Surface medium density fibre board, steel plate, diamond tread aluminum alloy available.
3. Max. Diameter 35000mm available
4. Rotate car 360 degree
5. Made by steel, FOB Qingdao
6.2 years warranty, 1 month delivery
Car turntable, Vehicle Turntables, Automobile Turntables, Parking Turntables, max 35000mm diameter.
Directions for Use:
1. This machine is used where the car can not make a turn, and auto-revolving automobile exhibition platform
2. The range of rotation: 0°- 360°
3. Automatic or manually control of rotation
Automobile Turntables For home OR show
Residential driveway turntables solve parking challenges
No need to risk backing into traffic when you have a Car Turner vehicle turntable.
Just drive on, push the remote control (like a garage door opener) and the car turntable rotate
(~~you safely and easily, so you can drive off head-first).
Car turners help eliminate accidents and property damage, and protect children from harm.
Turn your parking stress into pride of ownership with this practical and classy upgrade for
Your home. No digging required as the car turner mounts on the surface of your existing ground.
Main Parameter:

Diameter	4000mm	4500mm	5000mm	5500mm	6000mm	6500mm	7000mm
Height	150-320 mm	150-320 mm	150-320 mm	150-320 mm	150-330 mm	150-330 mm	150-330 mm
Speed of turning	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm
Load capacity	2000kg	2500kg	3000kg	3500kg	4000kg	4500kg	6000kg
Power	0.55kw	0.55kw	0.55kw	0.75kw	0.75kw	0.75kw	0.75kw
Transmission mode	Pin-Gear drive mechanism
Platform material	1.22mm Density Fiberboard 2. Steel plate 3. Pattern aluminum plate 4. Tempered glass(choose any one)
Control system	360°Rotation, button control/remote control/PLC control

Pin-gear Tranmission:
