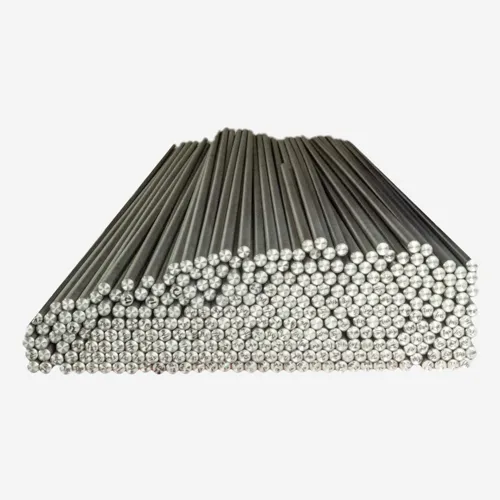

ASTM F136 Gr2 Gr4 Gr5 6al4V Eli Titanium Rod Titanium Bar

Product Description

Ruiyang company, audited by SGS and BV, offers high-quality Industrial Titanium Bars. Explore our ASTM F136 Gr2 Gr4 Gr5 6al4V Eli Titanium Rod Titanium Bar for industrial and medical applications. Cold Rolled for superior quality.

Material:	GR1, GR2, GR3, GR4, GR5, GR5ELI,TA1,TA2,TA3,TA7,TA9,TA10,TC4,TC4ELI,TC6,TC9,TC10,TC11GR1,GR2,GR3,GR5,GR6,GR7,GR12,GR29,Ti6242 ,Ti662 ,Ti6246 ,Ti5Al2.5sn ,Ti6Al7Nb
Standard:	ASTM F67, ASTM F136, ISO5832--3:1996(E),GB/T2965-2007,GB/T13810,Q/BS5331-91ASTM B348,AMS4928
Size:	¢(3.0~200) mm *(500~4000)mm
State:	M
Surface Condition:	hot rolled/forged/peeled bright finish,Polishing; Lathing
Tolerance:	±0.1~±2MM
Straightness:	<= 0.5mm/m
Surface Roughness:	Ra 0.8~1.6

Explore ASTM F136 Gr2 Gr4 Gr5 6al4V Eli Titanium Rod Titanium Bar for industrial and medical applications. Cold rolled for superior quality.

Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	Bal
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	Bal
Gr3	0.05	0.08	0.015	0.3	0.35	/	/	/	/	/	Bal
Gr4	0.05	0.08	0.015	0.5	0.4	/	/	/	/	/	Bal
Gr5	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5	/	/	/	Bal
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.12-0.25	/	/	Bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	/	/	/	Bal
Gr12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2-0.4	0.6-0.9	Bal

ASTM F136 Gr2 Gr4 Gr5 6al4V Eli Titanium Rod Titanium Bar High-quality titanium bar with excellent mechanical properties. Ideal for industrial and medical applications. Cold rolled for superior performance.

Material	Tensile strength MPa	Elongation %	Reduction of Area %
GR1	>=240	>=24	>=30
GR2	>=400	>=20	>=30
GR3	>=500	>=18	>=30
GR4	>=580	>=15	>=25
GR5	>=895	>=10	>=25
GR5ELI	>=825	>=8	>=15

Titanium Bars Usage Fields: Aerospace: Machine disk and blade, compressor, intermediary casing, bearing shell, pressure vessels, fuel tanks, frames, rocket housings, fasteners, engines, and pneumatic parts accessories. Medicial Application: Production of artificial prostheses, joint and orthopedic implants, dental implants, and medical rod filters. Petrochemical Application: Chemical equipment components and fasteners. Automobile and Motorcycle Application: Various processes and products. For high-quality titanium bars, trust SHAANXI RUIYANG IMPORT EXPORT CO., LTD. to deliver exceptional products for your specific needs.
For swift global delivery, inquire about our ASTM F136 Gr2 Gr4 Gr5 6al4V Eli Titanium Rod Titanium Bar. Contact SHAANXI RUIYANG IMPORT EXPORT CO., LTD. for wholesale or sample orders.
