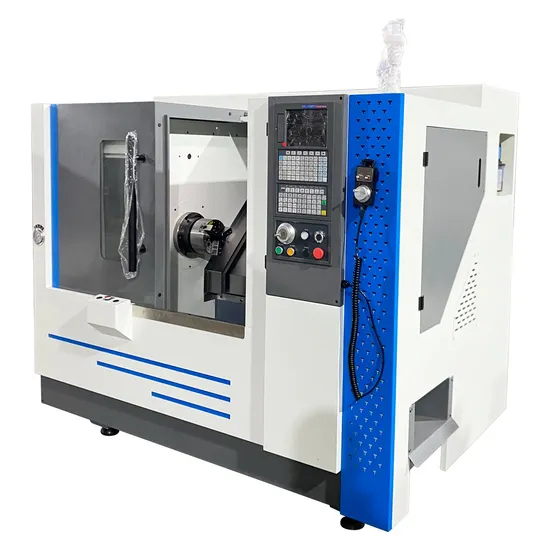

Gd4640 Power Turret Lathe Machine CNC Turning and Milling Machine
| US$16,500.00-17,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GD4640
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
<=0.01
Performance Classification
Economical CNC Machine Tools
Certification
ISO 9001
Condition
New
Machine Weigth
2500kg
System
GSK, Syntec or Fanuc
System Language
English
Clamping Way
Hydraulic(Pneumatic Is Optional)
Tool
12 Station Power Tool Turret
X/Z Drive
220/350
Spindle Bore
56
Maximum Machining Bar Diameter
45mm
Maximum Machining Length
300mm
Installable Accessories
Chat with Supplier
Transport Package
Wooden Box
Specification
2200*1600*1900mm
Trademark
XINSHIHENG
Origin
Taizhou
HS Code
8458110000
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
240.00cm * 180.00cm * 210.00cm
Package Gross Weight
2700.000kg
Product Description
Product Description
Detailed Photos
Product Parameters
| Standard Configuration Detail | |||||||
| Specification Item | Quantity | Supplier | Remark | ||||
| Specification of bed | 1unit | Shiheng | integrated bed | ||||
| Control System | 1unit | Guangshu(English) | 980TC3 | ||||
| Spindle Motor | 1unit | Weichuang | 5.5KW | ||||
| Three-axis motors | 1 unit | Weichuang | 8.28N | ||||
| X/Z axial line track | each 1unit | Rexroth Germany | Z-axis 35 /X-axis 30 | ||||
| X/Z axis bearings | each 1unit | Harbin | 7603025 | ||||
| X,Z,Y triaxial coupling | 1 unit | Shiheng | 22-22-78 | ||||
| X axis Ball Screw | 1 unit | Taiwan Shenghe | 3210 | ||||
| Z axis Ball Screw | 1 unit | Taiwan Shenghe | 3210 | ||||
| Main structure fuselage castings | 1 unit | sino | HT300 | ||||
| overload protection device contactor | 1 unit | Tianzheng | General | ||||
| Spindle | 1 unit | Shiheng | A2-5 | ||||
| Spindle locker | 1 unit | Qiuwu | Hydraulically | ||||
| Tool Post/Turret | 1 unit | Lianji, Taiwan | 12 station power turret | ||||
| Cooling Water Pump | 1 unit | Zegong | 550kw | ||||
| Auto Lubrication System | 1 unit | Qiantong | 2L | ||||
| Hydraulic Chuck | 1 unit | Dingchang | 6 inch | ||||
| Sensors/Encoders | 1 unit | Toroidal | / | ||||
| Hydraulic Tailstock | / | / | / | ||||
| Chip Cleaner | / | / | / | ||||
| Technology Parameter | |||||||
| Parameter | SPECIFICATIONS | Units | Value | ||||
| Machining Capacity | Maximum turning diameter over bed | mm | 450 | ||||
| Maximum turning diameter over turret | mm | 200 | |||||
| Maximum machining length | mm | 300 | |||||
| Maximum machining bar diameter | mm | 45 | |||||
| Diameter of spindle bore | mm | 56 | |||||
| Maximum stroke of X/Z | mm | 800/400 | |||||
| Spindle maximum spindle speed | r/min | 4000 | |||||
| Power System | Spindle Motor | kw | 5.5 | ||||
| Cutting fluid pump motor | kw | 0.9 | |||||
| Hydraulic pump motor | kw | 0.75 | |||||
| X/Z drive motor | kw | 1.7kw(GSK original) | |||||
| Tool Post | Height of rectangular tool shank section | mm | 20 | ||||
| Precision | Repeat Positioning accuracy | mm | <0.005 | ||||
| Machining accuracy | mm | <0.005 | |||||
| Spindle beat | mm | <0.005 | |||||
| Tailstock | Movement | / | / | ||||
| Diameter of sleeve | / | / | |||||
| Taper of sleeve | / | / | |||||
| Sleeve movement | / | / | |||||
| Feed Velocity | Fast Feed velocity | m/min | X:20/Z:20 | ||||
| Other | Power supply power | KVA | 7.5 | ||||
| Machine weight | kg | 2500 | |||||
| Machine Size | mm | 2200X1600X1900 | |||||
Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
