20-60kw Paper Egg Carton Making Machine/ Pulp Molding Machine with Germany Brand Valve

Product Description

20-60kw Paper Egg Carton Making Machine/ Pulp Molding Machine with Germany Brand Valve
This type semi-automic egg tray machine production line is not equipped with drying system, after mixing pulp process and automatic forming process, the wet egg trays will be moved to another place for drying by workers, and then prodcut can be dried by sunshine.
the semi-automatic egg tray production line is suitable for all kinds of paper pulp molded product.
It includes forllowing parts:
1. Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

2. Forming System :

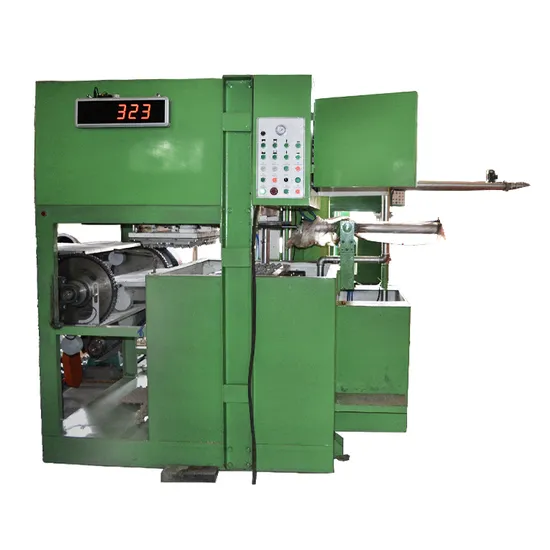

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
Technical Specification of the Egg tray machine

1.	Egg tray mould quantity		2pcs
2.	Raw material		Waste paper
3.	Output for egg tray		700pcs/hour
4.	Net weight per piece (gram)		70g-75g
5.	waste paper consumption		0.053ton / hour
6.	water consumption		0.15ton/hour
7.	Operators number		3-4workers
8.	Area of workshop	Without dryer	≥100 M²
9.	Capacity of power	Without dryer	30KW
10.	Machine length	Without dryer	8meters
11.	Size of container	Without dryer	20ft*1

	Main parts
Pulping system	Including : water pool-1pcs mix pool-1pcs mill pulp pump -1set water pump-2sets pulp pump -2sets 1M³pulping machine -1sets
Forming system	Including 2 moulds forming machine -1set Vacuum pump-1set Compressor -1set Washer -1set Vacuum tank-1pcs Air tank-1pcs

	Description	Quantity	Motor power
Pulping system	Pulping machine	1set	7.5kw
	Pulp Pump	1set	4kw
	Pulp pump	1set	1.5kw
	Mill pulp pump	1set	7.5kw
	Water pump	2sets	0.75kw*2=1.5kw
	Mixer	1set	1.5kw
	Pulp pool and Water pool	1set
Forming system	Moulding machine	1set	2 sets Aluminum forming molds
	Vacuum pump	1set	7.5kw
	Mold Washer	1set	1.1kw
	Pulp pump	1set	1.5kw
	Air Compressor	1set	11kw
	Vacuum tank	1set
	Air tank	1set
	Electric Control Cabinet	1 Set
