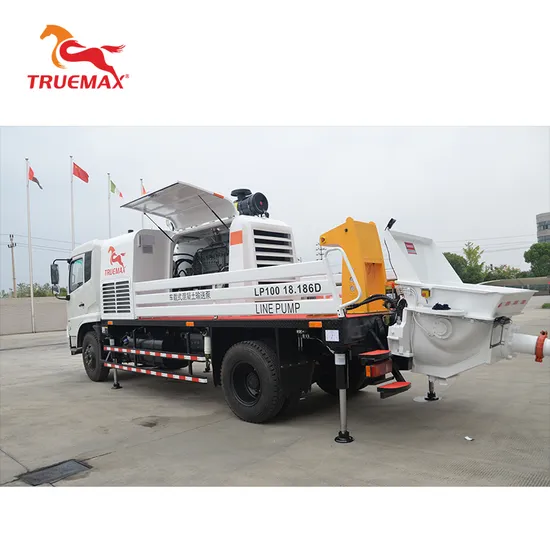

Truemax Truck Mounted Line Pump Lp100.18.186D Concrete Pump

Product Description

Production Information:

ITEMS		UNITS	LP100.18.186D
Performance	Max.Theo.Output(Low/High)	m³/h	100/50
	Max. Concrete Pressure(Low/High)	MPa	44092
	Main oil Pump	/	Rexroth
	Distribution Valve	/	S Valve
	Concrete Cylinder(Bore×Stroke)	mm	φ230×1800
	Hopper Size(Capacity×Feeding Height)	m³×mm	0.7×1460
	Outlet Diameter	mm	DN150
Power system	Engine	/	Deutz
	Rated power	kW	186
	Rated Speed	r/min	2100
Hydraulic system	Hydraulic System	/	Open Circuit
	Type of Cooling	/	Air Cooling
Chassis	Chassis Brand	/	DONGFENG
	Axles	/	4×2
Overall	Overall Dimensions(L×W×H)	mm	9200×2480×3270
	Total Weight	kg	13800

1.Perfectly combined the stationary pump and pump truck, has the high pressure performance of stationary pump and has the advantages of quick transition and flexible movement of pump truck .Save a lot of transshipment costs and avoid the the security risks when lifting.
2.We can drive the pump to parking area for cleaning and maintenance, to make sure the pump has best performance everyday, reduce the failure caused by errors during the operation, greatly extend the life of the machine, more convenient for the company to mange on equipment, costs and operator.
3.Can participate in other pumping equipment fault rescue, it has a nickname "fire fighters", the first aid equipment of concrete pumping equipment.
4.Used in urban construction, housing construction, roads, bridges, dams, energy and other concrete construction, to achieve a long time continuous concrete pump, is the most ideal product among the existing concrete and mortar, tailings slurry transportation equipment .
5.It can work as 3 to 5 stationary pump, connected to 3-5 pipeline and placing booms at the same time, and meet the relay pumping construction of multiple sites. The reasonable use of a truck pump can achieve 5 pumps benefit. Stationary pump is generally fixed in a site, the time costed to transit it from one jobsite to another is far more than the operation time.The Truck-mounted Line Pump utilization rate is very high, the monthly output of concrete is more than 12000CBM, high&quick returns.

Production Show:
Product Advantage:
DEUTZ diesel engine,with low speed big torque,fast acceleration starting;small volume and light weight;low vibration,low noise ,low fuel consumption,extend maintenance cycle,low operating cost with high reliability.
1.The hydraulic system mainly consists of three pumps,which control the movements of the main
cylinder,swing distributing oil cylinder and stirred motor.
2. TRUEMAX unique backflow preventing device
During maintenance and repair process,no need to release the hydraulic oil effectively reducing maintenance time,and avoid pollution to protect the environment.TRUEMAX unique twin cylinder piston return technology reduces replacement time of concrete piston from more than 120 mins to 10mins.
3.Hydraulic System
Using the large displacement hydraulic integrated block in the industry. Compact design , simple and reliable connection of hydraulic pipeline greatly reduce leakage ,reduce system liquid resistance 380L/min flow inside the radiator which keep the excellent system performance with low temperature.
4.Best appearance design
The overall structure of the vehicle with more reasonable design, The engine and frame at the same direction, the vehicle stability and handing more comfortable, more wide perspective of reversing.

Our Service:
Faster speed of response of service Modern transportation network of railway and aviation,make sure that all spare parts got delivered in time.

Apart from supplying only the best quality products, we also have available our technical and management solutions.
Our service teams always ready to provide expertise to you. Truemax is ready to provide you with a full range of services.

Best service effect to win your satisfaction and trust We continue to work for guests providing customized system solutions and provide best support and services.Because of the formidable technical team, we have provided high quality tour service to all guests.
Company Profile:
Zhejiang Truemax Engineering Co Ltd. is a manufacturer and high-tech enterprise integrating R&D, design, manufacturing and marketing.As the company's core industry,engineering construction machinery currently mainly covers three series:concrete machinery,crushing machinery and construction machinery
Truemax insists on a high starting point and high quality, and uses 5% of its sales revenue every year on technologe research and development, trying to making high-end products. In terms of management, Truemax adopts the 6S management system,so quality control is strictly implemented in all aspects of parts procurement, production, packaging and shipment,which makes our products reach the international advanced level.
Truemax actively responds to the national "Made in China 2025" strategy and the call of energy conservation and environmental protection.With the help of the national "One Belt and One Road" strategy, it continues to introduce professional talents and advanced technology. Through unremitting efforts, our services reach every corner of the country. Users anywhere in the country can get thoughtful and meticulous service.
FAQ:
Q: Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.
Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, and ect.
And we have strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.
Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
Address: No. 118 Haifeng Road, Jianshan New Zone, Haining City, Zhejiang Province China
