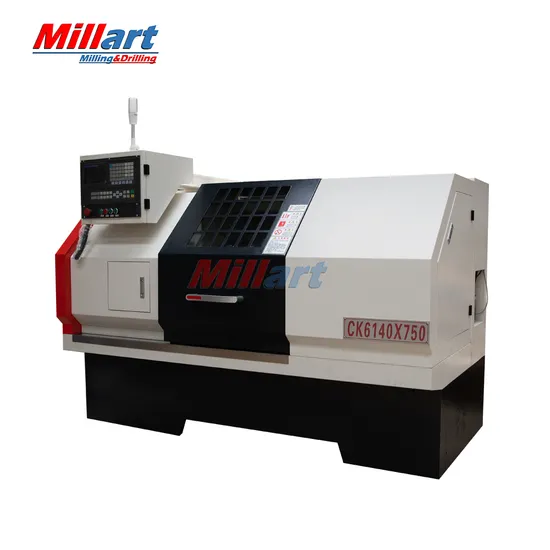

High Precision CNC Lathe Machine Ck6140 Flat Bed Turning Lathe CNC Machine
| US$8,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6140
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Swing Over Bed
400mm
Swing Over Cross Slide
230mm
Spindle Bore
65mm
Guide Way Width
360mm
Spindle Taper
Mt6
Transport Package
Wood Case
Specification
big size
Trademark
L&T
Origin
China
HS Code
84581900
Production Capacity
50 PCS/Month
Product Description
High Precision CNC Lathe Machine CK6140 Flat Bed Turning Lathe CNC MachineProduct Description
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face. It can also turn the single and multiple threads in metric , inch and other standard.
1.high rigidity pedestal and wider lay board are suitable for heavy cutting
2.four station electric turret
3.inverter stepless speed
Product Parameters
| Model | CK6140 |
| Max. swing over bed | 400mm |
| Max. swing over cross slide | 230mm |
| Max. processing length | 750mm |
| Guide way width | 360mm |
| Spindle bore | 65mm |
| Spindle taper | MT6 |
| Spindle speed | Variable 200-2000 rpm |
| Spindle nose | A2-6 |
| Spindle motor power | 5.5kw |
| Number of tool post | Vertical 4 station electric turret |
| Max. size of toolshank | 20*20 |
| Position accuracy | 0.1 |
| Repeat position accuracy | 0.005 |
| Tailstock sleeve dia. | 65mm |
| Tailstock sleeve travel | 140mm |
| Tailstock taper | MT4 |
| N.W. | 1900kg |
| Machine dimension (L*W*H) | 265x155x195cm |
Configuration
| Siemens808D control system |
| 3-jaw chuck(Φ200mm) |
| 4-station electrical toolpost |
| Work lamp |
| Coolant system |
| Dead centre(MT4) |
| Centre sleeve(MT4/6) |
| Oil gun |
| Tool box |
| Operation manual |
