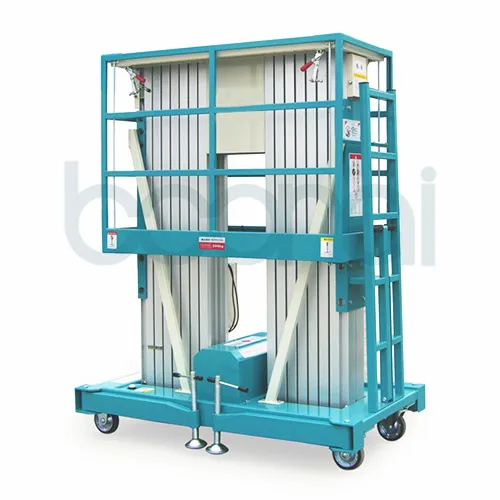

20m Multi-Masts Hydraulic Lift Work Platform

Product Description

Multi-masts Aerial Work Platform
Company introduction: Boonai Lift Equipment Co. Ltd as a modern manufacturing enterprise is specialized in aerial workplatform, providing package service for design, production, sales and after-sales.There is an experienced team that takes care of every process for design, production and qualitycontrol and dedicated to provents with excellent work.With business philosophy of "Quality First, Client Oriented", we are striving for building a reputablebrand of Boonai by following the steps of the giants for the innovation of products and theimprovement of process and pursuing the perfection on every detail.Main products are as follows: masts aerial work platform, scissor lift, fixed lift table, car lift andmaterial picker as well as electrical aerial work platform, with a wide application for the fields asmachinery, military, aviation and logistics etc. Product introduction: Application: 1 passengers.
Max height of platform: 16m,18m,20m,22m for option.
Features: double decks,more working height.
Standard Configuration 1.Power supply: single phase AC(AC220V)
2.Move mode: manual
3.Driving unit: one unit hydraulic pump,small volume and less noise
Others
1.Hand shank enables easy steering
2.Leveling of platform is guaranteed by adjusting outrigger with screws
3.Electric contacts safety support designed to stabilize the base
4.Electric limit switch shall cut off power when up limit is reached
5.Ground/platform control modes are available,rendering possibility of one operator
6.Stroke protection block is built in hydraulic cylinder for security
7.Emergency lowering system is equipped
8.Raise-and-fall guard rail,rendering minimum height of equipment when in storage status,easy to install9.Leveling indicator is equipped.
9.Leveling indictor is equipped.
Optional Configuration
Move mode:
1.Electric moving device is equipped iin case of long-distance travel
Others:
1.Explosion-proof electrical system
2.Overload alarm
3.Outrigger limit switch
4.Tilt alarm
5.AC power to platform
6.Working alaim
7.Rubber dust stop
8.Explosion-proof valve for oil tube
Parameters

Model			GTWY16-420	GTWY18-420	GTWY20-420	GTWY22-420	GTWY24-420	GTWY28-420
Platform height maximum		mm	16000	18000	20000	22000	24000	28000
Working height maximum		Mm	18000	20000	22000	24000	26000	30000
Ground clearance		Mm	80	80	80	80	80	80
Lift capacity		Kg	150	150	150	100	100	100
Platform size		Mm	1450*900	1450*900	1550*900	700*700	700*700	1300*700
Extended outrigger		Mm	3000*2840	3000*2840	3370*3150	4100*3800	4100*3800	5200*5500
Power supply	AC	V	220	220	220	220	220	220
	DC	v	24	24	24	24	24	24
Maintenance-free battery		v/Ah	2×12/120	2×12/120	2×12/120	2×12/120	2×12/120	2×12/120
Charger		v/A	220V/60A	220V/60A	220V/60A	220V/60A	220V/60A	220V/60A
Lifting motor	AC	v/kw	220V/2.2/1.1KW	220V/2.2/1.1KW	220V/2.2/1.1KW	220V/2.2/1.1KW	220V/2.2/1.1KW	220V/3.7/2.2
	DC	v/kw	24V/2.2/0.8KW	24V/2.2/0.8KW	24V/2.2/0.8KW	24V/2.2/1.5KW	24V/2.2/1.5KW	24V/2.2/2.0
Wheel -Front/Back		inch	8/10	8/10	8/10	8/10	8/10	8/10
Overall length		Mm	2250	2250	2500	3100	3100	3200
Overall width		Mm	1320	1320	1420	1650	1650	1600
Overall height		Mm	2180	2420	2620	3000	3000	2980
Overall weight (AC)		kg	1700	1800	1930	2480	2600	4400

• Company Certificates
• Part or Customers
• Packing
• Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.
