Laboratory Two Roll Open Mill Rubber Mixing Device
| US$3,270.00-4,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GC-WS-1000S
Control Type
Artificial
Automatic Grade
Manual
Power Source
Electric
Type
Open Mixing Mill
Working
High Speed Mixer
Stirring Type
Spiral
Certification
CE, ISO
Application Area
Metallurgy&Mineral
Layout Type
Horizontal
Mixing Drum Shape
Disc
Additional Capabilities
Milling
Operating Type
Cycle Operating
Condition
New
Mixer Type
Rubber Mill Mixer
Roller Hardness
50 ~ 60HRC
Roller Handling
Mirror Polished Chrome
Safety Devices
Collision Emergency Stop
Product Name
Open Mill Rubber Mix Machine
Transport Package
Wooden Package
Specification
750*380*600mm
Trademark
GC
Origin
China
HS Code
9024800000
Production Capacity
300sets/Month
Packaging & Delivery
Package Size
75.00cm * 38.00cm * 60.00cm
Package Gross Weight
85.000kg
Product Description

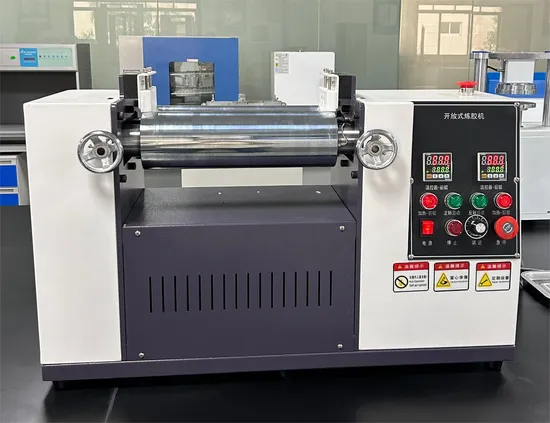

Product Description The two roll rubber open mill rubber mixing machine is a type of rubber processing equipment that is used to mix and process rubber compounds. It consists of two horizontally placed rolls that rotate in opposite directions at different speeds.The rubber material is fed into the gap between the rolls, which are adjustable to control the thickness of the sheet being produced. The rolls are heated and cooled to control the temperature of the rubber compound during mixing.
The open design of the machine allows for easy access and monitoring of the mixing process.
This type of machine is commonly used in the rubber industry for producing various rubber products such as tires, belts, hoses, and seals.
Detailed Photos Product Parameters
| Product Name | Open Mill Rubber Mixing Machine |
| Item model | GC-6015D-3 |
| Conrtol mode | Keystoke Control |
| Machine size | 750*380*×600mm |
| Spacing display method | Scale |
| Roller width | 300mm |
| Roller hardess | 50 ~ 60HRC |
| Roller Handling | Mirror Polished Chrome |
| Rotating speed | 10-40r/min |
| Roller temperature | Normal temperature/normal temperature -250 ºC |
| Temperature uniformity | 2.5 °C |
| Special function | Emergency stop |
| Total weight | ≈128kg |
| Power | AC220V, 2.2KW |
