High Capacity Double Cone Rotary Vacuum Mixer Dryer Blender Machine

Product Description

High Capacity Double Cone Rotary Vacuum Mixer Dryer blender machine INTRODUCTION:

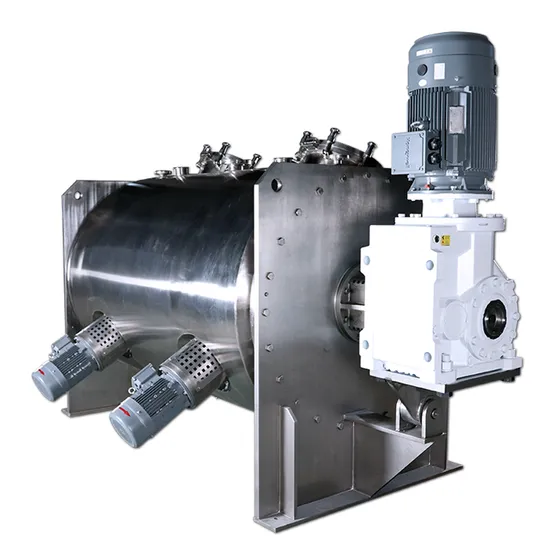

The PerMix PTPD series Vacuum Mixer Dryer is a turbulent mixing reactor-dryer. It is used as a high-speed mixer dryer, chemical reactor or, if both processes are combined, as a dryer-reactor. They are used with particular success in agglomeration-free rapid drying, heterogeneous reactions with systems of different substances, extraction, sterilization and in general for vacuum, positive-pressure, thermal energy and comminuting aids. With PTPD vacuum mixer dryer, drying time is dramatically reduced with products free from agglomerates!
PerMix PTPD series Vacuum Mixer Dryers are widely used in the chemical, metallurgic and pharmaceutical industries among others. Standard sizes range from 3 liters up to 20,000 liters and pressure up to 50 bar.
DESIGN WITH MULTI-CHOPPERS:
The installation of PerMix Multi-chopper in the basic PTPD vacuum mixer dryer enables the breaking down of agglomerates during the mixing process. Together with the mixing element, the PerMix Multi-chopper removes lumps in the initial product, chops pasty adhesives and hinders the formation of agglomeration during the moisturizing of powdered substances. The PerMix Multi-chopper is operated independently by its own motor. Double mechanical seals are mounted to the shaft.
ADVANTAGES:
PerMix Vacuum Mixer Dryers are highlighted with the following advantages compared with competitions:
1. Cost savings: PerMix Vacuum Mixer Dryer combines several machines asking for less pipe-work, fewer control and space footprint
2. Short reaction times
3. Optimum heat transfer via large contact areas
4. Turbulent mixing by mechanical fluidization of reaction material
5. No dead areas in reactor and the discharge areas
6. PerMix Vacuum Mixer Dryers can also be supplied with removable mixing tools.
7. Easy to clean and sterilize
8. Long service life through the use of corrosion resistant reactor materials (Stainless Steels, Hastelloy, Titanium, Nickel Alloys)
FEATURES & OPTIONS:
Many features and options are available with PerMix Vacuum Mixer Dryer, including but not limited to:
1. Different mixing elements (paddles, plows, ribbons, or combined tools)
2. PerMix multi-chopper unit
3. Different sealing arrangements (packing seals, double mechanical seal, Cinchseal, etc)
4. Vacuum filter housing
5. Heating jacket for water, oil or steam with ASME U-stamp or PED certificate
6. Flush-fitting semi-ball discharge valve
7. Special spraying unit for coating
8. Open sidewall for cleaning purposes
9. Pneumatic semi-ball discharge valve
10. Discharge screw
11. Different metal constructions (SS304, SS316L, Titanium, Duplex steel, Hastelloy, etc.)
12. Heated shaft
13. Sampling port
14. Explosive-proof construction
15. Control board, etc.
APPLICATIONS:
- Foods
Crispy Coating, Dried Soups, Drink Mixes, Fruit Drinks, Fruit Mixes, Fruit Pulps, Fruit Purees, Grains, Herbs, Instant Soups, Juice Powder, Soluble Cocoa Drinks, Soluble Fruit Drinks, Starch, Stock Cube Mixes, Tea Extracts, Tea Mixes, Tobacco
- Chemicals
Agricultural Chemicals, Biocides, Carbon Pastes, Ceramic Pastes, Chemical Masterbatch, Crystal Solids, Explosives, Fertilizers, High-purity Materials, Metal Powders, Pesticides, Polymers, Toners
- Pharmaceuticals
Active Agents, Biological Solids, Carcinogenic Substances, Concentrated Active Ingredients, Generics, Intermediate Products, Sterile Products, Toxic Substances

Model	Total capacity (liter)	Working capacity (liter)	Power (*) (kW)	Speed (rpm) (**)	Chopper Nos	Chopper Speed (rpm) (***)
PTPD-45	45	30	0.75	81	1	1,500
PTPD-70	70	45	0.75	69	1	1,500
PTPD-100	100	70	1.1	60	1	1,500
PTPD-200	200	140	1.5	53	1	1,500
PTPD-300	300	210	2.2	51	1	1,500
PTPD-500	500	350	4	45	2	1,500
PTPD-750	750	500	5.5	45	2	1,500
PTPD-1000	1,000	700	7.5	33	2	1,500
PTPD-1500	1,500	1,000	11	28	2	1,500
PTPD-2000	2,000	1,400	15	25	3	1,500
PTPD-3000	3,000	2,100	22	23	3	1,500
PTPD-4000	4,000	2,800	30	17	4	1,500
PTPD-5000	5,000	3,500	37	17	4	1,500

1. (*) (**) (***): Changes are available according to the customer's request.
2. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
3. PerMix reserves the right to modify the design without notice.
Machine Details:
Q: What is your price level compared with European suppliers and local Chinese suppliers?
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc. We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment, we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea
