Carry 500-1000 Kgh Plastic Water Bottles Recycling Machine/Pet Flakes Hot Washing Line

Product Description

Product Description

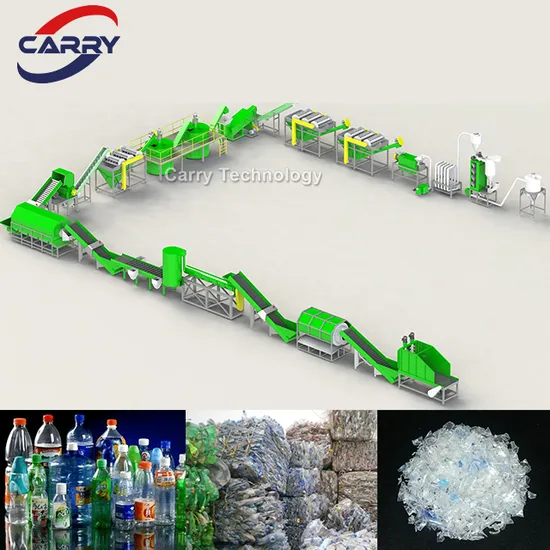

Machine Introduction Plastic PET bottle recycling machine washing line is used to recycle waste pet plastic bottles.
The main process of the whole production line is sorting, crushing, washing and drying.
This machine adopts the automated water circulation system, continuous feeding and washing.This system uses the structure specially designed to cause friction of PET bottles inside the machine,and uses the high-temperature chemical water to remove the labels, dirt, sands, glues, rubbers, metal and other impurities on the bottles surfaces.Through detection system, it is able to conduct automatic control over temperature and chemical supplement, to achieve comprehensive automatic control of production process, and guarantee bottle washing quality.
Supporting chemical water filtration system, using coarse filter, fine filter, sedimentation,separate impurities of chemical water and reuse, thus to prolong the service life of the chemical water.
Customers will get clean and dry PET bottles flakes with size around 12-20mm depend on customer's choice.
These PET flakes can be used to make PET packing straps or polyester fiber directly. Also PET flakes can be used to make PET granules for making PET bottles, PET sheet or PET injection material again.
Machine output capacity : 300-400kg/h, 500-600kg/h, 800-1000kg/h, 1000-1500kg/h, 1500-2000kg/h, 2000-2500kg/h, 2500-3000kg/h, 4000-5000kg/h.
Product Specification

capacity	Ancillary staff	Installation power	Water Consumption	Workshop(M*M*M)
300kg/h	6Persons	156KW	3Ton/h	35 (L)×10(W)×6(H)
500kg/h	6Persons	186KW	5Ton/h	35 (L)×10(W)×6(H)
1000kg/h	8Persons	307KW	6Ton/h	35 (L)×10(W)×6(H)
2000kg/h	10Persons	380KW	10Ton/h	35 (L)×10(W)×6(H)
3000kg/h	12Persons	426KW	15Ton/h	35 (L)×10(W)×6(H)
5000kg/h	16Persons	656KW	20Ton/h	35 (L)×10(W)×6(H)
Final product	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm

Plastic PET bottle Recycling Machine Washing Line
Features:
1. Main material contact with water adopt stainless steel 304.
2. Complete solution for washing line. installation,water circulation and operation training.
3. Capacity is optional from 300kg per hour to 5000kg per hour.
4. Negotiable washing process to help client get the most suitable washing line.

Heavy duty wet crusher machine
To crush waste bottles into small sizes (12-18mm customized).
With water to pre-wash and clean material and cool blades during crushing.
Screw type friction loader
This machine is used to load the crushed plastic scraps and friction with water spraying to wash away the dirty
Hot washer tank (Hot Steam heating or electrical bar heating)
Use hot water mixing with caustic soda or other detergent to remove oil, glue and other impurities.
With special design to discharge impurities which float on the water (such as label, bottle caps, etc). This design will improve washing effect.
High speed Horizontal Friction washer
To remove remaining caustic soda and other impurities by water and high speed friction. The friction plates inside tank are madeof special wear-resistant steel for durability.
Floating washing tank
Make remaining label, caps and other impurity float and separate from PET flakes. With washing function for PET flakes.
Horizontal dewatering machine
Dewatering process
The water droplets on the material can be separated from the material by high-speed rotation to complete the preliminary material drying.
Pipe line dryer
Hot air can be generated by the motor and heating system to re-dry the material initially dried by the desiccator and blow it to the silo for collection.
Label remover
It can be screened with dry materials, and impurities such as dust labels in the materials can be carefully cleaned to obtain clean and identical materials.
Color sorting machine
To sort out the bad color bottle flakes and get the good color PET flakes to improve the final flakes quality.
Special washing agent
By adding this special washing agent with NaOH to hot washer, the final PET flakes will be more cleaner and brighter.
Detailed Photos
Our machine main motor is Siemens brand, inverter ABB, temperature controller Omron, all international famous brand components:
Related Machines
You may also like, click for more details
Company Profile
Certifications
Customer Cases
Welcome to visit my factory to check machine
1.5 hours driving time from Shanghai to my city
Packaging & Shipping
FAQ
Q: What about the payment terms?
----Always 30% down payment as deposit,70% balance payment after inspection before shipping.
Q: What is your guarantee time?
----Our guarantee time is 12 months.
Q: If you will send engineer coming to our factory to install and test the machines?
----Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q: If you have CE,SGS,ISO certificate?
----Yes,except these,if you also need other certificates,we also can help to apply.
Q: If we buy your machines, can you offer us wear-out spare pats?
----Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q: What is the machine voltage?
----380V 50hz 3 phase or any other voltage according to client's requirement.
