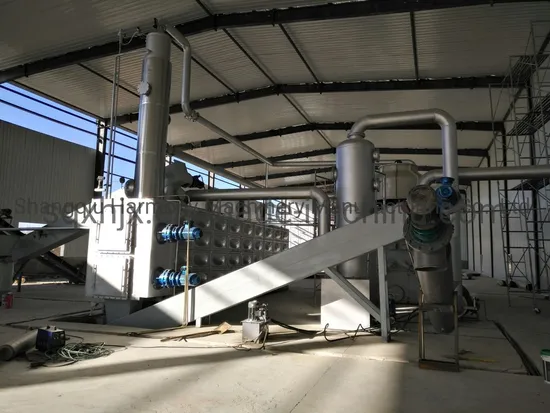

Plastic Waste Recycling Machine 30 Ton Per Day Fully Continuous Pyrolysis Plant
| US$4,888,888.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XHLX-20-30
Automatic Grade
Semi-Automatic
Power Source
Gas
Type
Pyrolysis
Transport Package
Export Packing
Specification
XHLX-20-30
Trademark
XHZT
Origin
China
HS Code
84198990
Production Capacity
10
Product Description
plastic waste recycling machine 30 ton per day fully continuous pyrolysis plant1. Technical parameter
| Reactor size | (L*W*H)22*2.3*2.5M |
| material | Q345R |
| Work pressure | slightly negative pressure |
| Process capacity /24hours | about 30 Ton tyre |
| About 20 Ton plastic | |
| About Oil sludge 40 Ton | |
| About Oil sand 30-40 TON | |
| output | Base oil /furnace oil |
| Working principle | Oxygen free pyrolysis |
| workers | 6 |
| power | 40 kw |
| voltage | 220v/380v |
| Power consumption/24hours | 500 kw |
| Water consumption | 3-4 Ton |
| Feeding time | Continuous feeding |
| Carbon discharge time | Continuous |
| working life span | 4-5yeat |
| Slag temperature | 150ºC |
| Fuel | Gas, oil |
| Pyrolysis way | Static pyrolysis, non-rotate |
| Slag discharge way | Continuous |
| Dust smoke temperature | 350ºC |
2. Plant Features:
1) widely usage
Can be used for tyre 5-10cm,plastic,rubber ,oil sludge, cooking waste ,live waste, oil sand ,oily soild
2) static pyrolysis ,getting higher quality oil, less dust in oil
3) large capacity
24hours produce 20-30 Ton material
4) continuous pyrolysis, no need cooling reactor, saving fuel, saving working time
5) The plant can work fully continuously.
6) Continuous feeding without stop
7) Continuous slag out without stop
8) Non-liquid gas can be reused to support heating for heating reactor , saving fuel energy
9) good pressure tightness, safe
10) High automation, PLC control.
4.The material can be pyrolysised :
5.other products of our company
| Specification | Capacity | Raw material | Heating material | Working time (hrs) | Shipped by |
| XHZT-1600-4000 | 2-3 Ton | Waste tyres Cables Plastics Rubber Oil sludge Oily sand Oil stone Oily waste Mazut oil Sludge oil | Wood, coal oil, gas | 8 | 1*40HQ |
| XHZT-2200-6000 | 5Ton | 12 | 2*40HQ | ||
| XHZT -2600-6000 | 8Ton | 15 | 1*40HQ+1*40FR | ||
| XHZT -2600-6600 | 10Ton | 18 | 1*40HQ+1*40FR | ||
| XHZT -2800-6000 | 10Ton | 18 | 1*40HQ+1*40FR | ||
| XHZT -2800-6600 | 12Ton | 20 | 1*40HQ+1*40FR | ||
| XHZT -2800-8000 | 15ton | Medical waste | 22 | 1*40HQ+1*40FR | |
| Tunnel type plant XH-2800-11000 | 13 Ton | 1*40HQ+1*40FR | |||
| Tunnel type plant XH-3000-14000 | 15Ton | ||||
| Contiuous plant XHLX-20-30 | 20-30 Ton | Other waste | 24 | 3*40HQ+1*40FL | |
| Contiuous plant XHLX-40-60 | 40-60 Ton | 24 | 4*40HQ+1*40FL |
