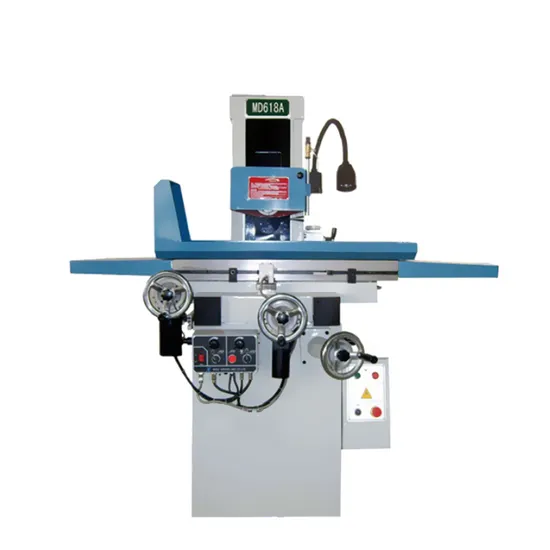

MD618A China High Precision Small Metal Electric Surface Bench Grinder Machine with Price
| US$2,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MD618A
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
180X460mm
Power
1.1
T Slot
1X14
Wheel Speed
3440
Coolant Motor
40W
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
SURFACE GRINDING MACHINE FEATURES:
Product Description:
1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
3-axis manual operation, X, Y axis can be eletric auto operation.
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system
SPECIFICATIONS:
| MODEL | MD618A | |||
| Working table | Table Size (L× W) | mm | 460×180 | |
| Max movement of working table(L× W) | mm | 500×190 | ||
| T -Slot number×width | mm | 1×14 | ||
| Grinding head | Max distance from spindle center to table surface | mm | 335 | |
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ180×13×Φ31.75 | ||
| Wheel speed | 50HZ | r/min | 2850 | |
| 60HZ | 3440 | |||
| Longitudinal speed of working table | m/min | 3-20 | ||
| Feed amount | Cross feed of working table | Continuously(Variable Transmission) | mm/min | 150 |
| Intermittently(Variable Transmission) | mm/times | 0-5 | ||
| Per revolution on handwheel | mm | 2.5 | ||
| Per graduation on handwheel | mm | 0.02 | ||
| Vertical feed on handwheel | Per revolution | mm | 1.25 | |
| Per graduation | mm | 0.01 | ||
| Commutation feeder | Total input power | w | 150 | |
| X- feeder output speed | R/min | 0-225 | ||
| X- feeder size | mm | 280×130×120 | ||
| Y- feeder output speed | R/min | 0-120 | ||
| Y- feeder size | mm | 280×130×120 | ||
| Motor power | Spindle motor | kw | 1.1 | |
| Coolant pump motor | w | 40 | ||
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 | |
| Surface roughness | μm | Ra0.32 | ||
| weight | Net | kg | 667 | |
| Gross | kg | 767 | ||
| Overall dimension(L×W×H) | mm | 1550x1150x1590 | ||
| Package dimension(L×W×H) | mm | 1000x1150x1760 | ||
