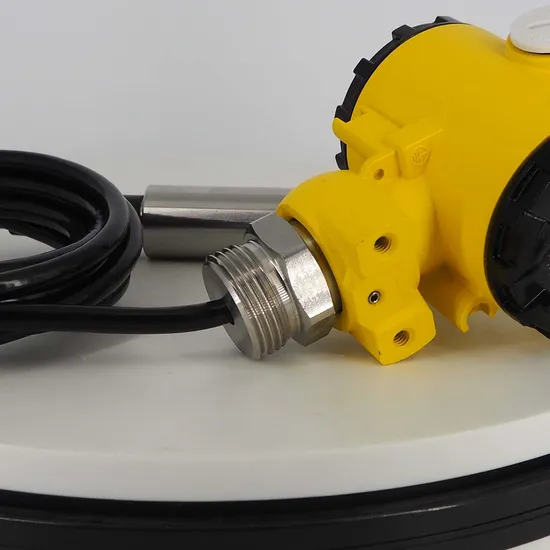

High-Quality Explosionproof Industrial Pressure Transmitter with 4-20mA Output Signal

Product Description

Product Description Introducing our state-of-the-art Explosionproof Industrial Pressure Transducer, meticulously engineered for demanding industrial applications. This powerhouse device provides a reliable 4-20mA output signal and is robustly constructed from 304 stainless steel. Delivering high-precision measurements, it boasts an impressive accuracy of 0.5% and 0.3%. With a versatile pressure range spanning from -0.1MPa to 6MPa, it is perfectly suited for a broad array of industrial environments, ensuring unparalleled performance and durability. Product Parameters Material: Premier 304 Stainless Steel
Accuracy: Precision levels at 0.5%, 0.3%
Pressure Range: Comprehensive -0.1MPa to 6MPa
Place of Origin: Jiangsu, China
Customized Support: Available OEM
Brand Name: Saice
Model Number: SZY-136FT
Pressure Type: Absolute and Gauge Pressure options
Protection Level: Certified IP65
Overload Capacity: Robust 200%FS (Max)
Stable Performance: Remarkable ±0.1%FS/year
Power Supply: Versatile 12-36V DC
Measurement Accuracy: 0.5% standard (0.3% optional)
Power: Efficient 0.18W, up to 0.72W (Max)
Output Signal: Options of 4-20mA, 0-5V, 0-10V, RS485
Temperature Drift: Minimal ±0.1%FS/

Measuring range	-0.1~6Mpa
Measurement accuracy	±0.5%F.S
Stability	≤0.2%F.S/year
Overload range	1.5 times full scale
Measuring medium	Non-corrosive gas liquid to stainless steel
Medium temperature	-30~70
Temperature drift	≤±0.01%F.S/
Output signal	4-20mA,0-5V,0-10V
Power supply	DC24V
Shell material	Cast aluminum housing,stainless steel fittings
Interface	Chuck 50.5mm,64mm
