HDT/VICAT Tester

Product Description

Product Description

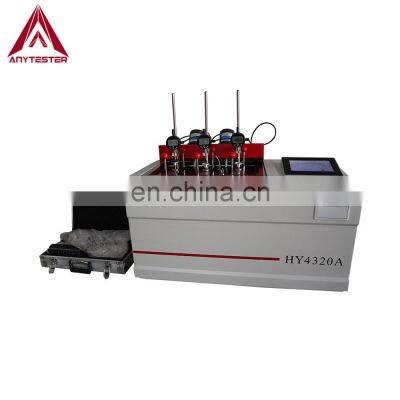

Product DescriptionHY4320A HDT/Vicat TesterHY4320C HDT/Vicat Tester is used to determine the heat distortion temperature (HDT) and Vicat softening point of plastic materials. It is widely suitable for plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting lamination materials and other non-metallic materials.Details and Features★ With build in industrial PC, touch screen control, digital micrometer to determine distortion, real-time display test curve, test software directly process test data, no need to calculate test result by users★ Test data can be imported into OFFICE software to edit★ 3 or 4 or 6 or customized working positions can be chosen★ With automatic lifting functionSpecificationModelHY4320ATemperature rangeRT~300℃Heating speed120℃/h [(12±1)℃/6min]50℃/h [(5±0.5)℃/6min]Max. temperature error±0.5℃Distortion range-0.1~1.1mmMax. distortion error0.01mmSample support span64mm, 100mmWorking position3 (4 or 6 optional)Heating mediumMethyl silicone oil or transformer oilCooling methodBelow 150℃: water cooling or natural coolingOver 150℃: natural coolingDimensions810mm×470mm×780mmPower supplyAC220V, 50Hz, 2500wOur CompanyPacking&DeliveryPackage Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContecting Us
