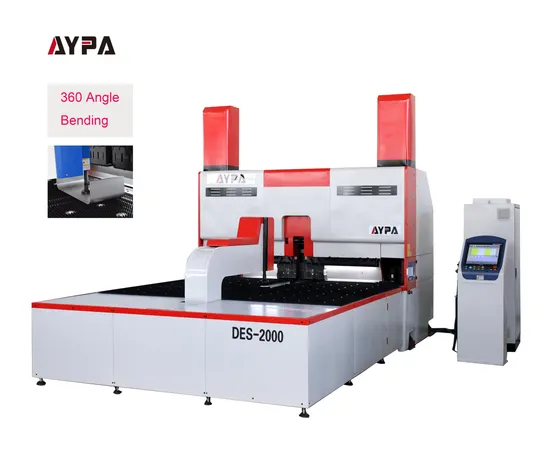

25 Axis Intelligent Cut Steel Press Brake Aluminum Copper Plate CNC Bender Automatic Panel Folding Bending Edge Machine for Metal Plate Pipe Tube

25 Axis Intelligent Cut Steel Press Brake Aluminum Copper Plate CNC Bender Automatic Panel Folding Bending Edge Machine for Metal Plate Pipe Tube

US$65,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
DES-2000
Warranty
1-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Driven Mode
Full Electro Servo
Bending Length
2000mm
Bending Height
170-300mm
Min. Bending Thickness
0.15 mm
Max Bending Thickness
2.5 mm
Loading Material
Fully Automatic by Robot Arm
Customization Level
Full
ODM
Available
Bending Angle
0-360°
Bending Material
All Metal Sheet
Feeding Method
Optional: Pressed or Sucked
CNC System
Taiwan Syntec
Servo Motor
Synmot
Gear Reducer
German-Rouist
Guide
German-Rouist
Transport Package
Wooden Case, Foam and Plastic Film
Specification
5100* 2700* 2800mm
Trademark
AYPA
Origin
China
HS Code
8462240000
Production Capacity
300sets/Year

Packaging & Delivery

Package Size
510.00cm * 270.00cm * 280.00cm
Package Gross Weight
18000.000kg

Product Description

25 Axes Freely Cut Punch Steel Press Brake Aluminum Copper Plate Bender Automatic Panel Bending Machine
Product Description AYPA is proud to introduce the intelligent flexible panel bender.
√ Tabular programming is visual and handled easily.
√ Users can monitor the machine operation and workpiece output by cellphone APP any time.
√ AYPA automatic bender can bend complex shapes without molding and needn't replace tools.
√ Fully closed loop controlling system supports 25 axes linkage.
√ AYPA bender can match with robot arm in automatic flow line.
√ It's widely used to produce cabinet, fire door, kitchenware, refrigeration, and aluminum walls.
Bending Workpiece Display
Detailed Photos* Q235 steel plate
* High temperature annealing process* 42CrMo forging material
* Customized knives available
Product Parameters
ModelDES-1200DES-1400DES-2000DES-2500DES-3000
Max. Continuous Bending Speed≤0.2sec/each bending≤0.2sec/each bending≤0.3sec/each bending≤0.5sec/each bending≤0.6sec/each bending
Max. Bending Length1000mm1400mm2000mm2500mm3200mm
Max. Bending Height170/210mm170/300 mm170/300 mm170/300 mm170/210 mm
Max. Bending Thicknessstainless steel1.0mm1.2mm1.2mm1.2mm1.2mm
Carbon steel1.2mm2.0mm2.0mm2.0mm2.0mm
aluminum1.5mm2.5mm2.5mm2.5mm2.5mm
Min. Bending Thickness0.15mm0.15mm0.15mm0.15mm0.15mm
Bending Degree0-360°0-360°0-360°0-360°0-360°
Accuracy of Bending Angle±1°±1°±1°±1°±1°
Accuracy of Feeding Length±0.1mm±0.1mm±0.1mm±0.1mm±0.1mm
Feeding MethodSucked/ PressedSucked/ PressedPressedPressedPressed
Feeding TableBrush+ Universal ballBrush+ Universal ballBrush+ Universal ballBrush+ Universal ballBrush+ Universal ball
Min. One-step Forming Size on All Four Sides200*280mm200*280mm200*280mm200*280mm200*280mm
Min. One-step Forming Size on Single Side150mm150mm150mm150mm150mm
Noise Level≈40db≈40db≈40db≈40db≈40db
Main Power380V380V380V380V380V
Outline Dimension (mm)3100* 1500* 28004500* 2000* 28005100* 2700* 28005700* 3100* 28007000* 3800* 2800
Approx. Weight (Tons)1011181921
Packaging & Shipping
Company Profile
FAQ1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.
